MEAN WELL PSC-35A-C SMPSU
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

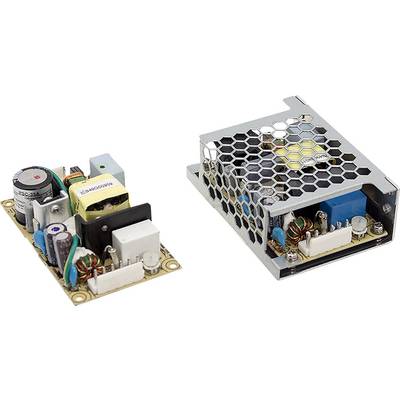

Switching power supply open-frame
- Output /
- Screw terminal
Technical specifications
- Type
switched-mode
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Dim
(L x W x H) 86.4 x 59.6 x 30 mm
- Connection
Screw terminal
- No. of outputs
2 x
- Type
open
- Weight
145 g
- Type
Synchronised
- Width
59.6 mm
- Height
30 mm
- Length
86.4 mm
- Type
PSC-35A-C
- No. of inputs
1 x
35.8 W
- Output voltage
27.6/27.6 V
- Output current (details)
1.3/0.45 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1371817 MEAN WELL PSC-35A-C SMPSU
User & Safety Instructions
User & Safety Instructions 1371817 MEAN WELL PSC-35A-C SMPSU
Information
Information 1371817 MEAN WELL PSC-35A-C SMPSU
Warranty Terms
Warranty Terms 1371817 MEAN WELL PSC-35A-C SMPSU
Description
Switching power supply in open-frame enclosure, protected against short circuit/over load/over voltage, with an input voltage range of 90-264V/AC.
Features
- open-frame
- universal input
- overload protection, pulsing hiccup shutdown, auto recovery
- protections: short circuit/over load/over voltage
- battery low protection
- Power fail signal
- battery low signal
