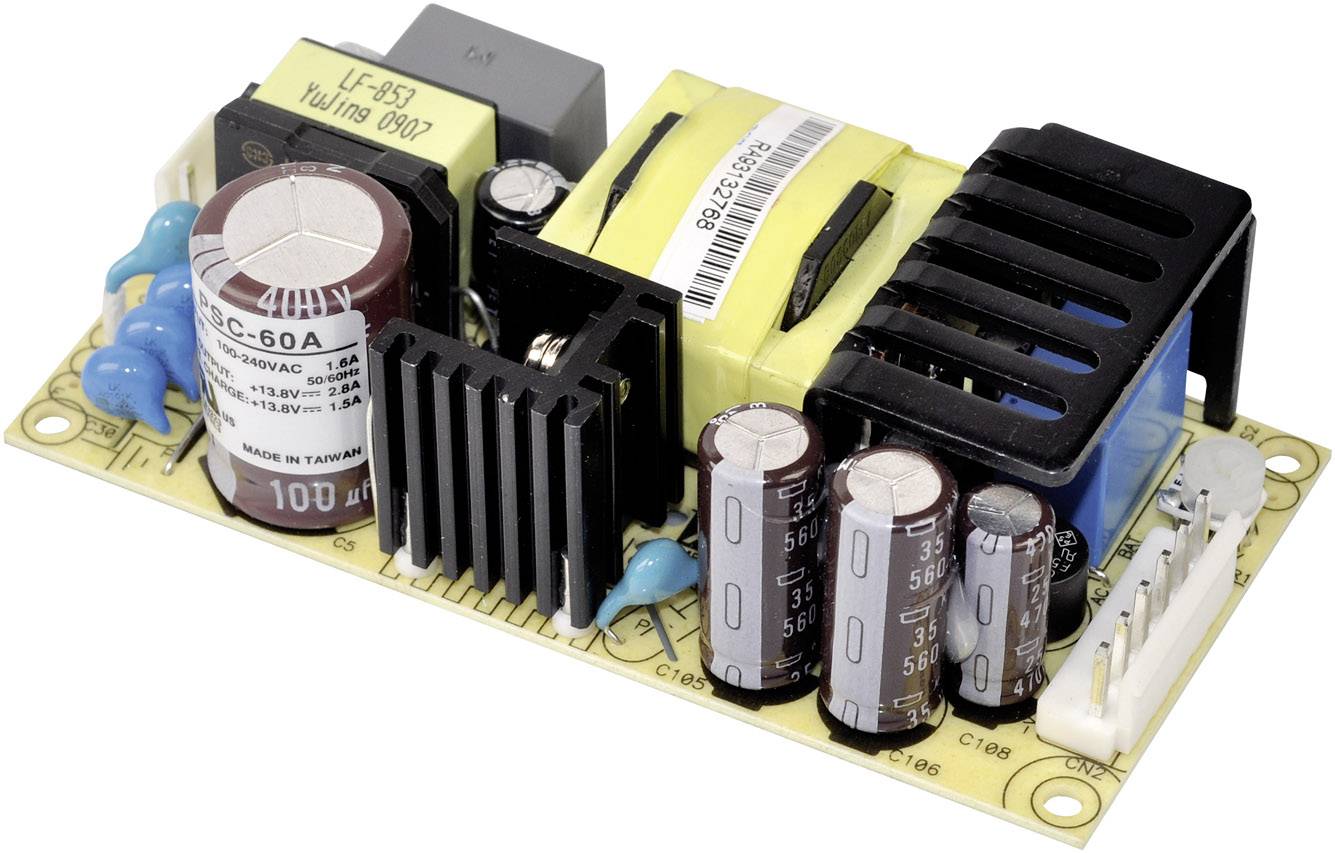

MEAN WELL PSC-60A SMPSU 13.8 V DC 4.3 A 59.34 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 33.61
-38 %
€ 21.00
plus VAT.
14-day return policy included
Highlights & Details
Switching power supply case
- Wide-range input
- With battery charging function
- /
- /
- 100 W
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
4.3 A
- Output current (max.) - rounded
4.3 A
- Min. input voltage
90 V AC
- Dim
(L x W x H) 101.6 x 50.8 x 29 mm
- Output voltage (max.)
13.8 V DC
- Connection
Pin strip for nylon crimp connectors
59.34 W
- No. of outputs
2 x
- Type
closed
- Weight
150 g
- Type
Switched Mode
- Width
50.8 mm
- Height
29 mm
- Length
101.6 mm
- Type
PSC-60A
- Output current 2 (max.)
1.5 A
- Output voltage 2 (max.)
13.8 V DC
- No. of inputs
1 x
100 W
- Output voltage
13.8/13.8 V/DC
- Output current (details)
4.3/1.5 A
- Inputs
1
- Input voltage
90 - 264 V/AC 127 - 370 V DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1293115 MEAN WELL PSC-60A SMPSU 13.8 V DC 4.3 A 59.34 W
User & Safety Instructions
User & Safety Instructions 1293115 MEAN WELL PSC-60A SMPSU 13.8 V DC 4.3 A 59.34 W
Information
Information 1293115 MEAN WELL PSC-60A SMPSU 13.8 V DC 4.3 A 59.34 W
Warranty Terms
Warranty Terms 1293115 MEAN WELL PSC-60A SMPSU 13.8 V DC 4.3 A 59.34 W
Description
Open frame · Universal input · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · Battery low protection · Power fail signal · Battery low signal
Features
- Protection against polarity reversal, short circuit, overload and voltage
- Convection cooling.
