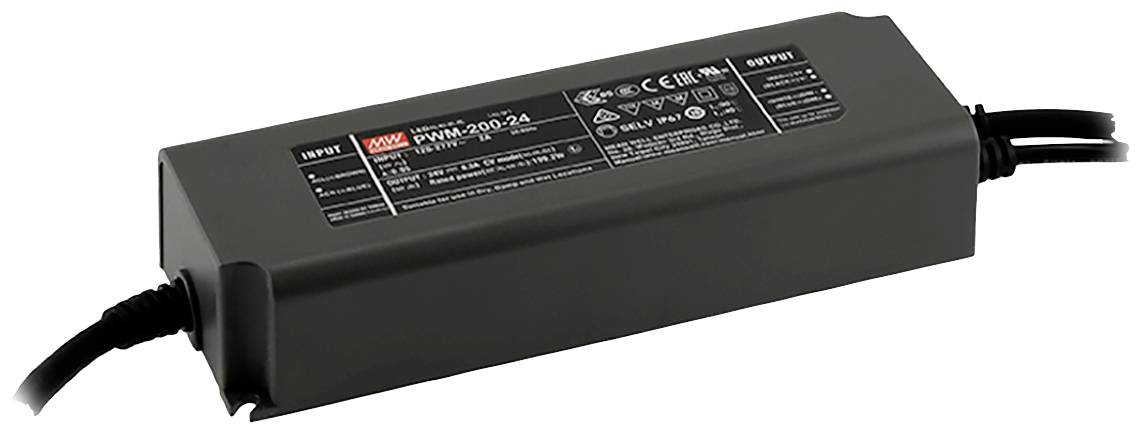

MEAN WELL PWM-200-36DA2 LED transformer Constant current 199.8 W 5.55 A dimmable 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
SNT 199.8W 36V/5.55A DALI2.0
- Constant current
- 5.55 A
Technical specifications
- Product type
LED transformer
- Type
Constant current
- Operating current
5.55 A
- Dim
(L x W x H) 195 x 68 x 39.5 mm
- Test mark
MM-Zeichen; SELV
- Max. output current
5.55 A
- Output current (max.) - rounded
5.55 A
- Operating voltage
36 V
- Protection class
II
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
199.8 W
- No. of outputs
1 x
- Input voltage (max.)
431 V DC
305 V AC
- Min. input voltage
143 V DC
100 V AC
- Weight
1003 g
- Power range
199.8 W (max)
- Width
68 mm
- Height
39.5 mm
- Length
195 mm
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2900764 MEAN WELL PWM-200-36DA2 LED transformer Constant current 199.8 W 5.55 A dimmable 1 pc(s)
Warranty Terms
Warranty Terms 2900764 MEAN WELL PWM-200-36DA2 LED transformer Constant current 199.8 W 5.55 A dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
