MEAN WELL RCP-1UI 19inch 1U rack for RCP-1000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 264.71 / piece)
€ 264.71
plus VAT.
Only 8 Piece(s) available

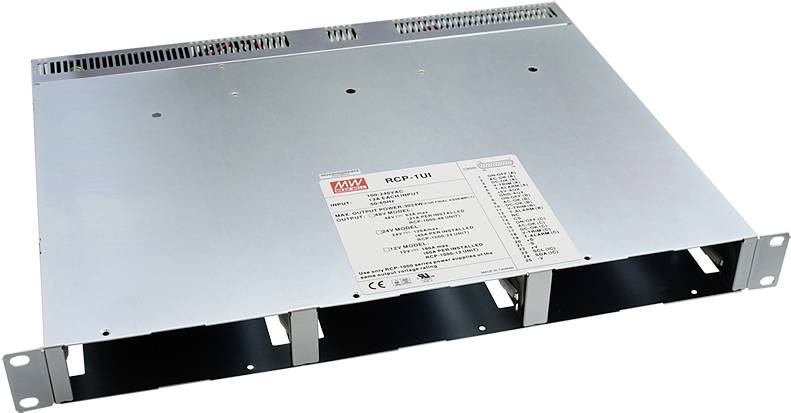

19inch 1U rack for RCP-1000
Technical specifications
- Product type
19" case
- Compatible with
MW Mean Well
- Type
RCP-1UI
- Height
44.00 mm
- Length
350.80 mm
- Width
483.60 mm
- Weight
4100.00 g
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1292339 MEAN WELL RCP-1UI 19inch 1U rack for RCP-1000
User & Safety Instructions
User & Safety Instructions 1292339 MEAN WELL RCP-1UI 19inch 1U rack for RCP-1000
Information
Information 1292339 MEAN WELL RCP-1UI 19inch 1U rack for RCP-1000
Warranty Terms
Warranty Terms 1292339 MEAN WELL RCP-1UI 19inch 1U rack for RCP-1000
Description
Enclosed case, built-in fan · Universal input · Overload protection, current limiting, auto recovery · Protections: short circuit/over load/over voltage · Built-in active PFC function · Low profile · Parallel function · Active current sharing up to 3000W (3 units) · Built-in remote On/Off control · Built-in remote sense function · AC OK & DC OK signal · Built-in auxiliary power · Hot-swap function · Internal ORing diode
Features
- Closed design (case) with fan
- Universal input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, over voltage
- Built-in PFC circuit
- low-height;
- Parallel function
- Active power distribution of up to 3000 W (3 power supplies) in 19-inch rack
- Switching on and off of the output voltage via remote signal
- Sensor connection for correct voltage at the load
- AC-OK and DC-OK signal
- Internal auxiliary voltage
- Hot-swap function
- Internal O-ring diode
