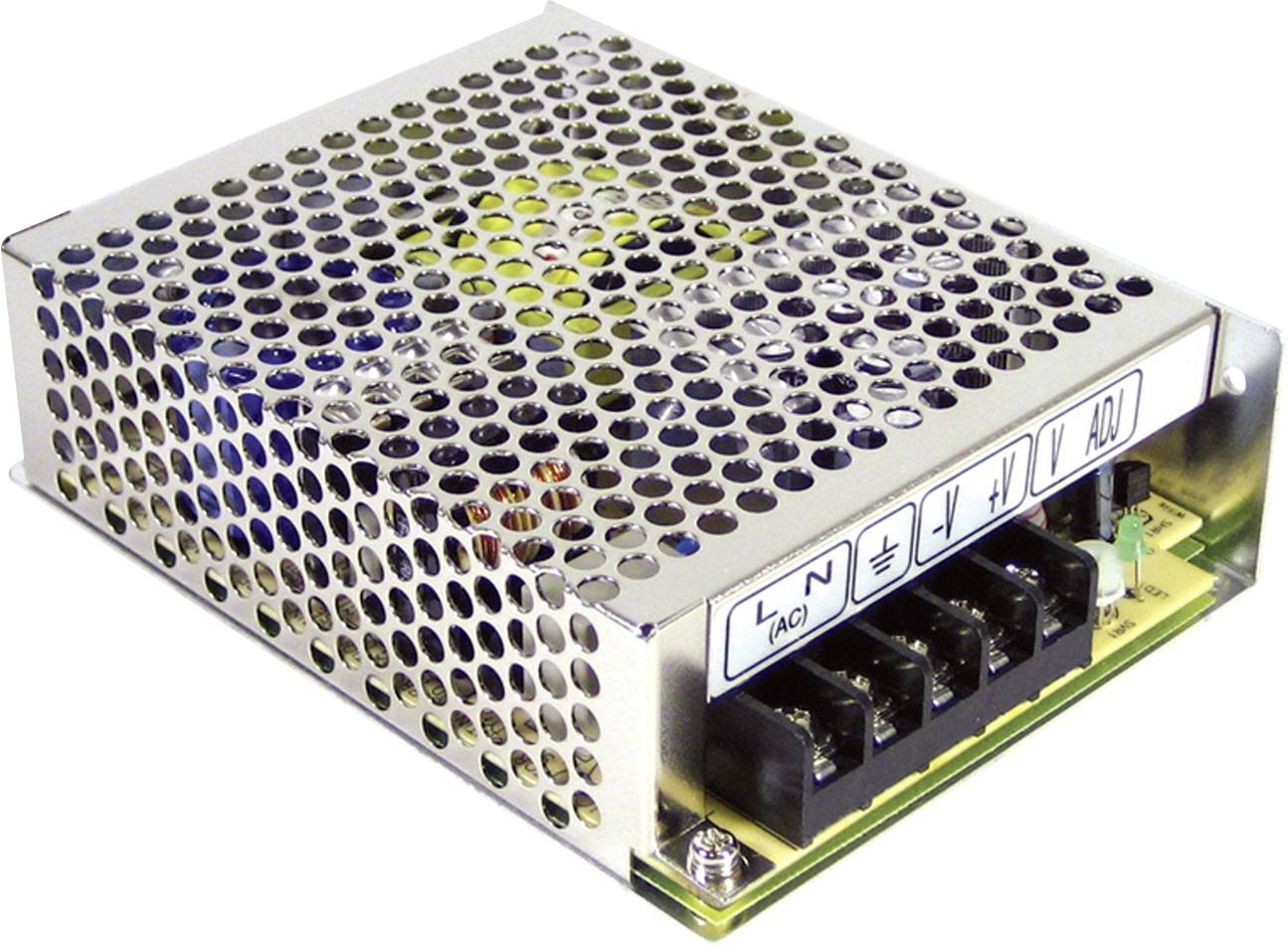

MEAN WELL RID-65A SMPSU 5 V DC 8 A 66 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL switched-mode power supply series RID-65 Enclosed dual output power: 65W
- Output 5 V DC / 8 A
- Power 66 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
373 V DC
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Min. input voltage
88 V AC
125 V DC
- Dim
(L x W x H) 129 x 98 x 38 mm
- Output voltage (max.)
5 V DC
- Connection
Screw terminal
66 W
- No. of outputs
2 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-25 °C
- Weight
440 g
- PSU features
Adjustable voltage output
- Type
Pulsed
- Width
98 mm
- Height
38 mm
- Length
129 mm
- Type
RID-65A
- MTBF
2659000 h
- Output current 2 (max.)
4 A
- Output voltage 2 (max.)
12 V DC
- PFC
No
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2237820 MEAN WELL RID-65A SMPSU 5 V DC 8 A 66 W
User & Safety Instructions
User & Safety Instructions 2237820 MEAN WELL RID-65A SMPSU 5 V DC 8 A 66 W
Warranty Terms
Warranty Terms 2237820 MEAN WELL RID-65A SMPSU 5 V DC 8 A 66 W
Description
Features
- Closed design (case), screw connections
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short-circuit, overload, overvoltage
- Long Life 105°C electrolytic capacitors
- Insulated outputs for CH1 + CH2
Hints
These power supplies are intended for installation in terminals.
