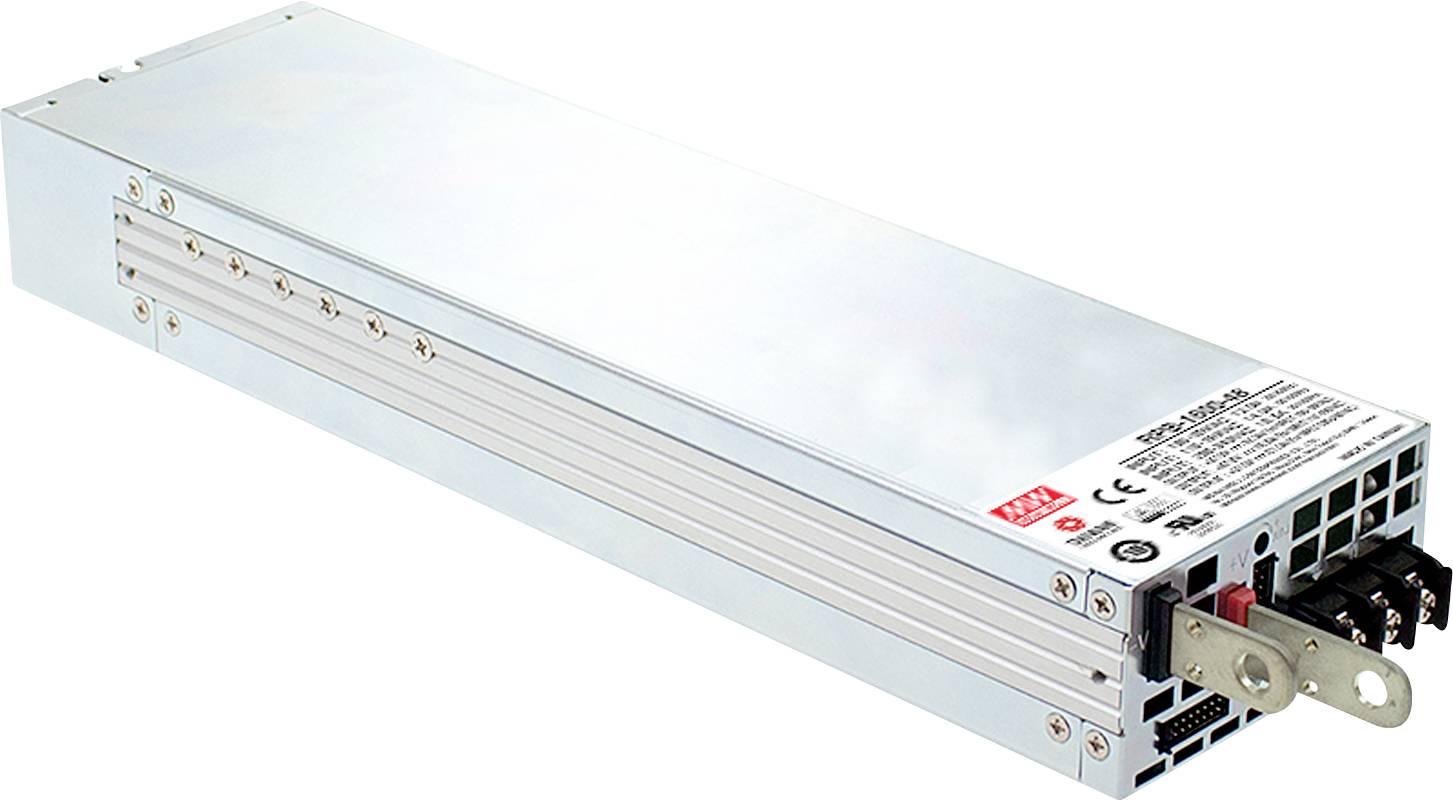

MEAN WELL RPB-1600-24CAN AC/DC PSU module 48 V 21 A 1008 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MeanWell RPB-1600 chargers for lead-acid batteries
- Output voltage can be set, output current can be programmed, remote function, AUX-power supply, DC-OK-signal, fan-free, DC compatible, output voltage can be programmed
Technical specifications
- Min. Input voltage 90 V/AC
- Max. input voltage 264 V/AC
- Min. Input voltage 250 V/DC
- Max. input voltage 431 V/DC
- Input current 5.3 A
- Product type
AC/DC PSU module
- Type
RPB-1600-24CAN
- Min. input voltage
90 V
- Input voltage (max.)
305 V
- Output voltages
48 V
- Max. output current
21 A
- Output current (max.) - rounded
21 A
- Efficiency (max.)
96 %
1008 W
- Connection
Braid
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 310 x 144 x 48.5 mm
- Height
48.5 mm
- Length
310 mm
- Width
144 mm
- Output voltage (max.)
48 V
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3435601 MEAN WELL RPB-1600-24CAN AC/DC PSU module 48 V 21 A 1008 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435601 MEAN WELL RPB-1600-24CAN AC/DC PSU module 48 V 21 A 1008 W Content 1 pc(s)
Description
HEP-1000 is a 1000W AC/DC power supply and battery charger that is distinguished by its outstanding ability to work in very humid, dusty, oily and vibration-rich environments. The entire series is housed in an aluminum casing and is completely cast with heat-conducting silicone. With an AC input voltage range of 90-305VAC, the entire series provides DC output voltages of 24V, 48V and 100V. In addition to the high degree of efficiency of up to 96%, the entire series from -40C to 70°C works under air convection without a fan. HEP-1000 has full protection features and 10G anti-vibration capability; it complies with international safety regulations such as TUV EN62368-1 UL62368-1, and the design meets the requirements of EN61558-1 and EN60335-1 HEP-1000 series serves as a high performance power supply solution for various industrial power supply and charger applications
This text is machine translated.
