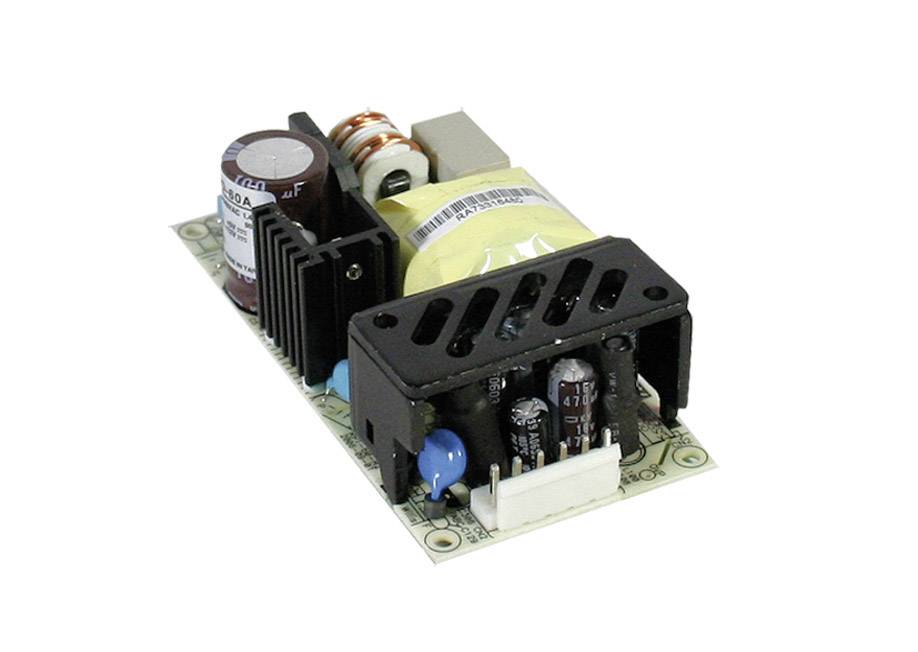

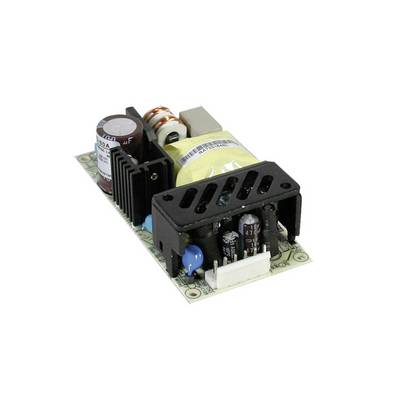

MEAN WELL RPD-60A SMPSU 5 V DC 5.5 A 49 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MEANWELL power supply series RPD-60 Medical open-frame Dual Output Power: 60 W
- Output 5 V DC / 5.5 A
- Power 49 W
- Pin strip for nylon crimp connectors
Technical specifications
- The sum of the services of the individual channels may not exceed the maximum total power.
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
5.5 A
- Output current (max.) - rounded
5.5 A
- Min. input voltage
90 V AC
127 V DC
- Dim
(L x W x H) 101.6 x 50.8 x 29 mm
- Output voltage (max.)
5 V DC
- Connection
Pin strip for nylon crimp connectors
49 W
- No. of outputs
2 x
- Type
open
- Weight
150 g
- Type
Pulsed
- Width
50.8 mm
- Height
29 mm
- Length
101.6 mm
- Type
RPD-60A
- MTBF
677800 h
- Output current 2 (max.)
2.2 A
- Output current 2 (min.)
0.1 A
- Output current (min.)
0.5 A
- Output voltage 2 (max.)
12 V DC
- Output voltage 2 (min.)
12 V DC
- Output voltage (min.)
5 V DC
- No. of inputs
1 x
- PFC
No
- Max. temperature
+65 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2113954 MEAN WELL RPD-60A SMPSU 5 V DC 5.5 A 49 W
User & Safety Instructions
User & Safety Instructions 2113954 MEAN WELL RPD-60A SMPSU 5 V DC 5.5 A 49 W
Warranty Terms
Warranty Terms 2113954 MEAN WELL RPD-60A SMPSU 5 V DC 5.5 A 49 W
Description
Features
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Conforms to EN 60601-1 (2x MOP)
Hints
These power supplies are designed for installation in devices.
