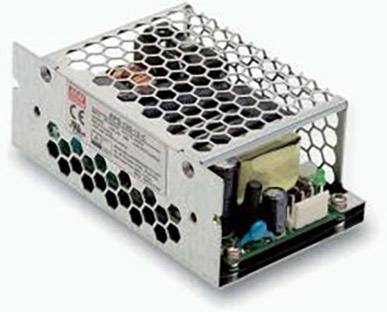

MEAN WELL RPS-120-24-C SMPSU 24 V 5 A 120 W, 80 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Corrugated Medical Switching Power Supply RPS -120-24 C
- Output 24 V / 5 A
- Power 120 W, 80 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 103.4 x 62 x 40 mm
- Output voltage (max.)
24 V
- Connection
Pin strip for nylon crimp connectors
120 W
80 W
- No. of outputs
1 x
- Type
closed
- Weight
240 g
- Type
Pulsed
- Width
62 mm
- Height
40 mm
- Length
103.4 mm
- Type
RPS-120-24-C
- MTBF
653500 h
- Output voltage (min.)
24 V DC
- PFC
No
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1837988 MEAN WELL RPS-120-24-C SMPSU 24 V 5 A 120 W, 80 W
User & Safety Instructions
User & Safety Instructions 1837988 MEAN WELL RPS-120-24-C SMPSU 24 V 5 A 120 W, 80 W
Warranty Terms
Warranty Terms 1837988 MEAN WELL RPS-120-24-C SMPSU 24 V 5 A 120 W, 80 W
Description
Features
- Closed design
- Pin strip connections for nylon crimp connectors
- Universal input
- 84 W with free air convection, 120W with 10 CFM forced ventilation
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, Uberhitze
- Conforms to EN 60601-1
- Stand-by: 12V/0.5A
