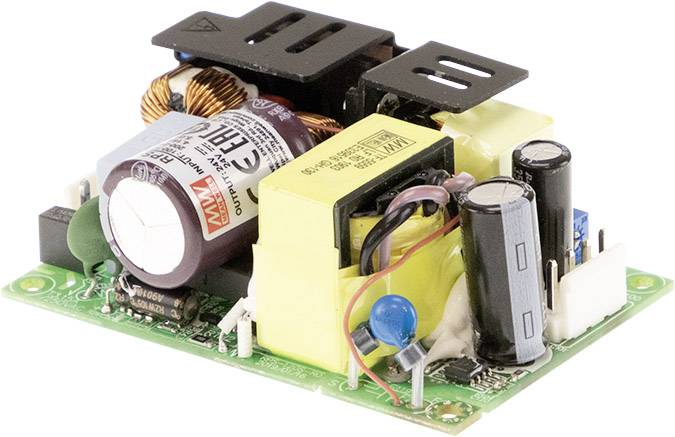

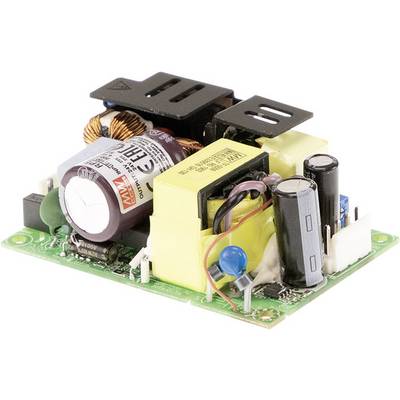

MEAN WELL RPS-120S-15 SMPSU 15 V DC 7.6 A 114 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 30.24
3
4% = € 1.32
€ 28.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
Only 2 Piece(s) available
Highlights & Details
MEANWELL power supply series RPS-120S Medical open-frame Single Output Power: 120 W
- Output 15 V DC / 7.6 A
- Power 114 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
370 V DC
- Max. output current
7.6 A
- Output current (max.) - rounded
7.6 A
- Min. input voltage
80 V AC
113 V DC
- Dim
(L x W x H) 76.2 x 50.8 x 28 mm
- Output voltage (max.)
15 V DC
- Connection
Pin strip for nylon crimp connectors
114 W
- No. of outputs
1 x
- Type
open
- Weight
130 g
- Type
Pulsed
- Width
50.8 mm
- Height
28 mm
- Length
76.2 mm
- Type
RPS-120S-15
- MTBF
468000 h
- No. of inputs
1 x
- PFC
Yes
- Max. temperature
+85 °C
- Min. temperature
-30 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2142604 MEAN WELL RPS-120S-15 SMPSU 15 V DC 7.6 A 114 W
User & Safety Instructions
User & Safety Instructions 2142604 MEAN WELL RPS-120S-15 SMPSU 15 V DC 7.6 A 114 W
Warranty Terms
Warranty Terms 2142604 MEAN WELL RPS-120S-15 SMPSU 15 V DC 7.6 A 114 W
Description
Features
- Compact design, 3" x 2"
- Pin strip connections for nylon crimp connectors
- Wide-range input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
Hints
These power supplies are designed for installation in devices.
