Buy MEAN WELL RPS-200-12-C SMPSU 12 V 16.7 A 200.4 W, 140.4 W

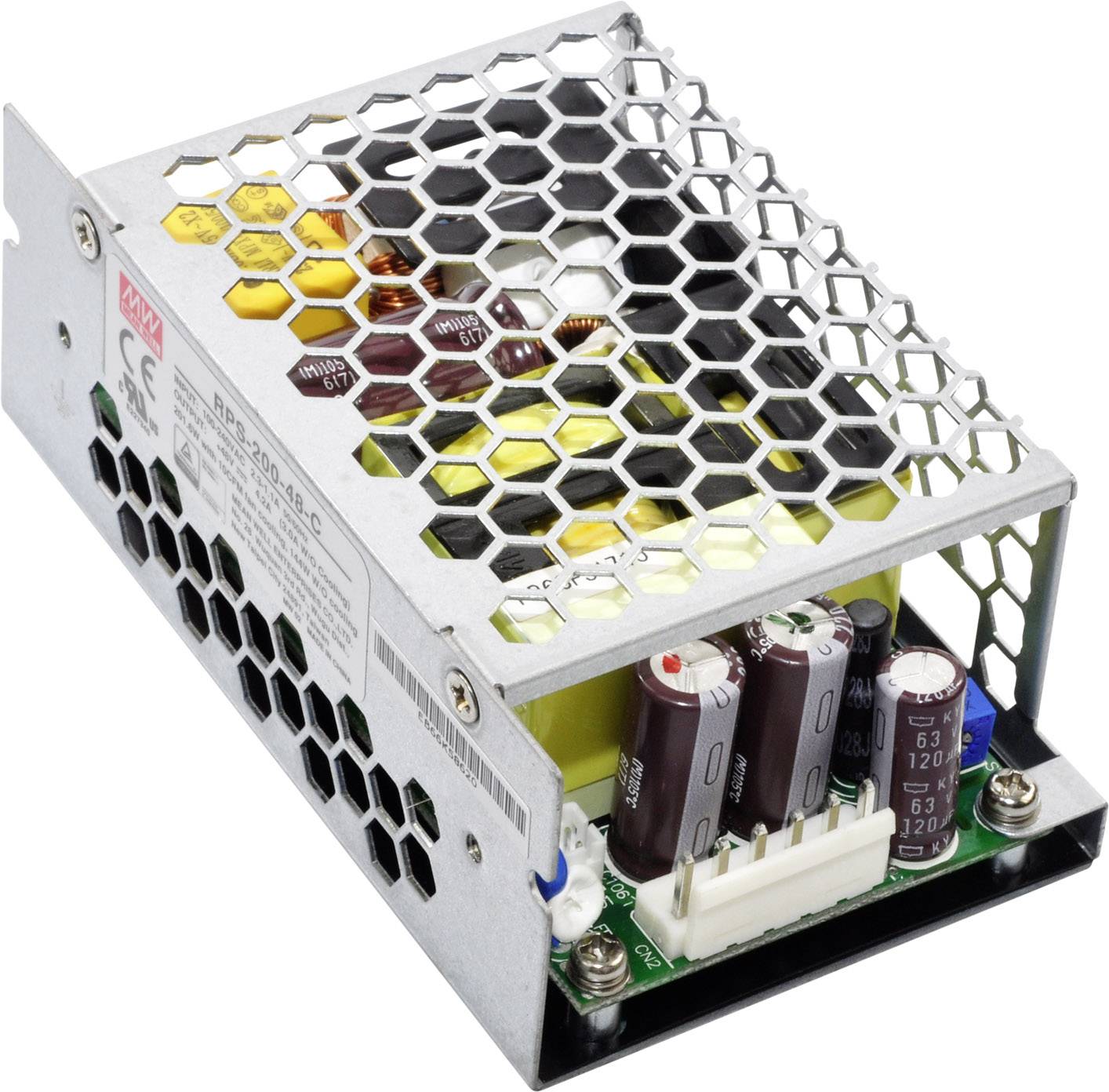

An open, rectangular power supply with visible electronic components and a honeycomb-patterned metal cover on top.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mean Corrugated Medical Switching Power Supply RPS-200-12-C

Output 12 V / 16.7 A
Power 200.4 W, 140.4 W
Pin strip for nylon crimp connectors

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 16.7 A

Output current (max.) - rounded: 16.7 A

Min. input voltage: 80 V AC
113 V DC

Dim: (L x W x H) 103.4 x 62 x 40 mm

Output voltage (max.): 12 V

Connection: Pin strip for nylon crimp connectors

: 200.4 W
140.4 W

No. of outputs: 1 x

Type: closed

Weight: 300 g

Type: Pulsed

Width: 62 mm

Height: 40 mm

Length: 103.4 mm

Type: RPS-200-12-C

MTBF: 500200 h

Output voltage (min.): 12 V DC

PFC: No

Max. temperature: +70 °C

Min. temperature: -30 °C

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1838085 MEAN WELL RPS-200-12-C SMPSU 12 V 16.7 A 200.4 W, 140.4 W

User & Safety Instructions

User & Safety Instructions 1838085 MEAN WELL RPS-200-12-C SMPSU 12 V 16.7 A 200.4 W, 140.4 W

Warranty Terms

Warranty Terms 1838085 MEAN WELL RPS-200-12-C SMPSU 12 V 16.7 A 200.4 W, 140.4 W

Description

To meet the increasing requirements of the medical industry standard power supplies, we have taken on the power supply series RPS-200 with 200 watt output power of mean well into the program. These conform to international medical safety provisions and are approved for medical equipment. The level the BF (Body Floating) with direct patient contact in accordance with the guidelines IEC 60601-1, ANSI/AAMI IT 60601-1 and TÜV EN 60601-1 (Version 3.1) and meet the requirements of 2x MOP.
The power supplies offer an ideal standard power supply solution for application in medical technology, health care, and biochemical test devices, which require a very low leakage current, as well as for medical monitoring devices and autonomous robot. In addition, extremely low power consumption of less than 0.5W meets the requirements of the energy savings.

This text is machine translated.
