MEAN WELL RPS-30-15 SMPSU 15 V DC 2 A 30 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

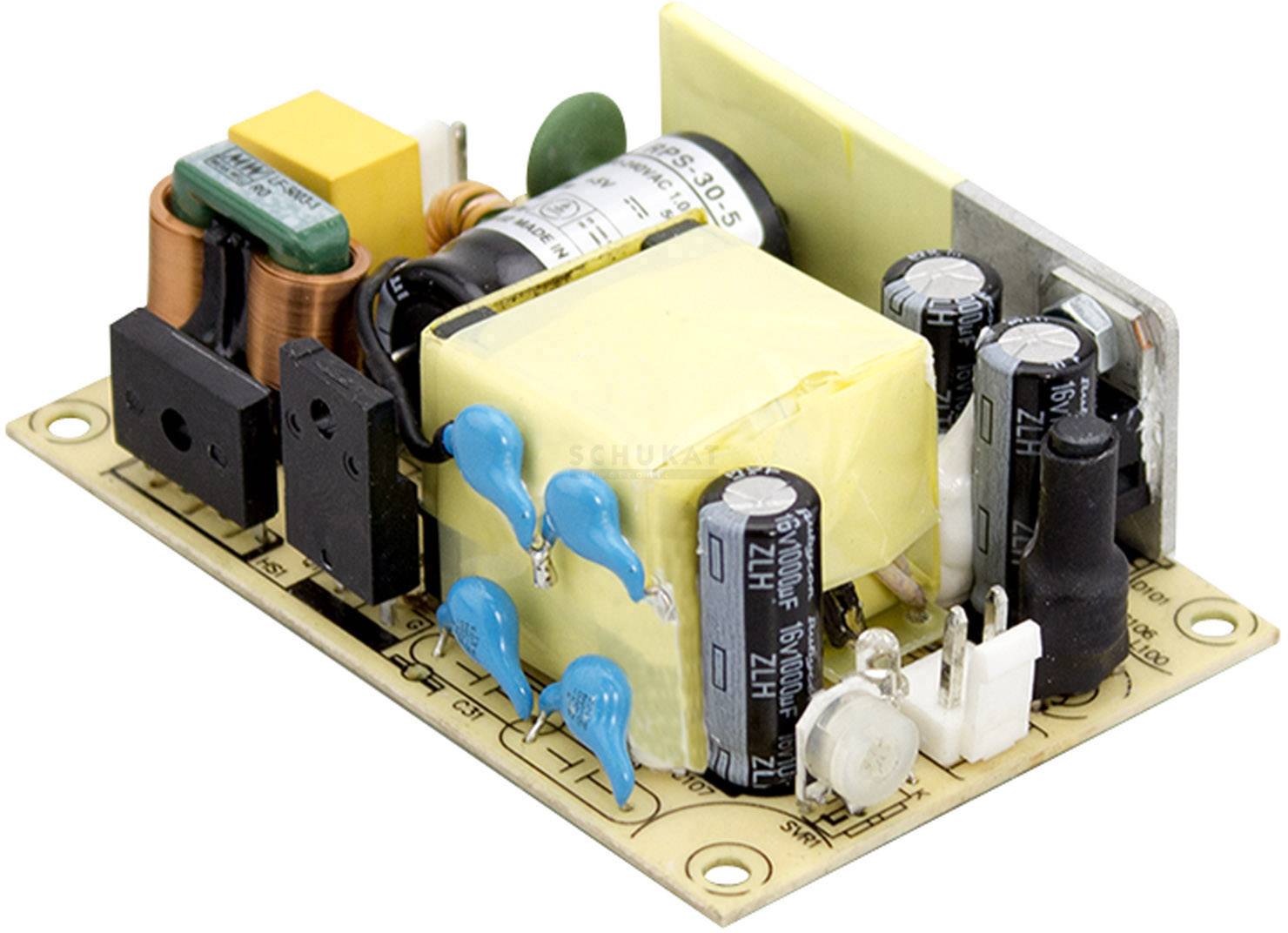

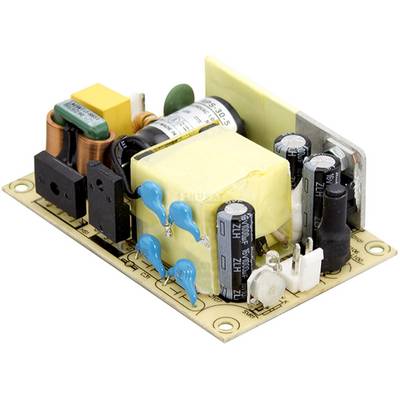

MEANWELL Power Supply Medical Open Frame RPS -30-15
- Output 15 V DC / 2 A
- Power 30 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Min. input voltage
80 V AC
- Dim
(L x W x H) 76.2 x 50.8 x 24 mm
- Output voltage (max.)
15 V DC
- Connection
Pin strip for nylon crimp connectors
30 W
- No. of outputs
1 x
- Type
open
- Weight
90 g
- PSU features
Adjustable voltage output
- Type
Pulsed
- Width
50.8 mm
- Height
24 mm
- Length
76.2 mm
- Type
RPS-30-15
- MTBF
628700 h
- Output current (min.)
0 A
- No. of inputs
1 x
- PFC
No
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1838185 MEAN WELL RPS-30-15 SMPSU 15 V DC 2 A 30 W
User & Safety Instructions
User & Safety Instructions 1838185 MEAN WELL RPS-30-15 SMPSU 15 V DC 2 A 30 W
Warranty Terms
Warranty Terms 1838185 MEAN WELL RPS-30-15 SMPSU 15 V DC 2 A 30 W
Description
Features
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Conforms to EN 60601-1
- Low idle power
