Buy MEAN WELL RPS-300-15-C SMPSU 15 V 20 A 200 W, 300 W

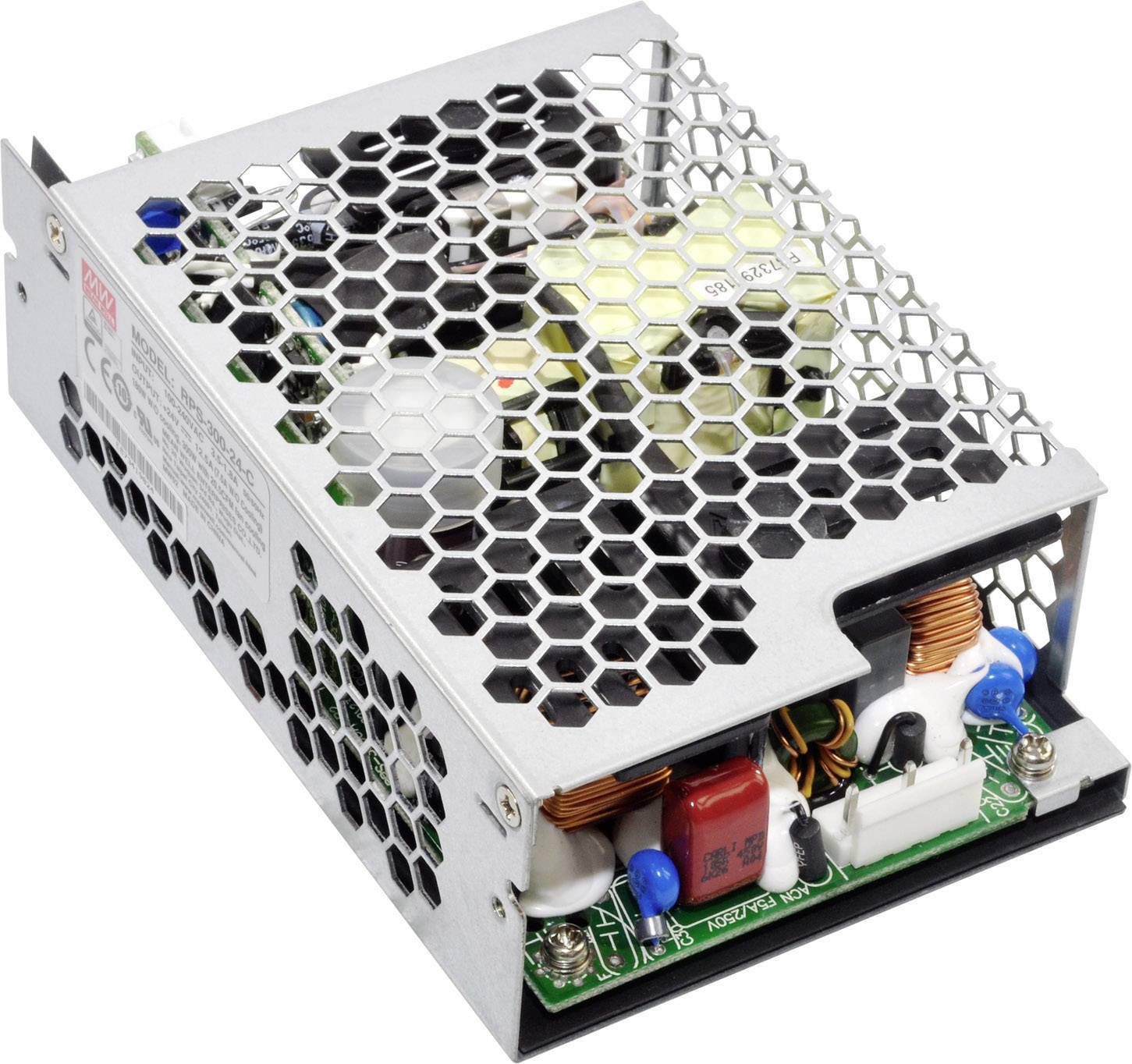

An industrial power supply with an open metal chassis and honeycomb-style ventilation, revealing internal electronic components.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mean corrugated switched-mode power supply RPS -300-15-C

Output 15 V / 20 A
Power 200 W, 300 W
Pin strip for nylon crimp connectors

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 20 A

Output current (max.) - rounded: 20 A

Min. input voltage: 90 V AC
127 V DC

Dim: (L x W x H) 130 x 86 x 43 mm

Output voltage (max.): 15 V

Connection: Pin strip for nylon crimp connectors

: 200 W
300 W

No. of outputs: 1 x

Type: closed

Weight: 563 g

Type: Pulsed

Width: 86 mm

Height: 43 mm

Length: 130 mm

Type: RPS-300-15-C

MTBF: 160000 h

Output voltage (min.): 15 V DC

PFC: Yes

Max. temperature: +70 °C

Min. temperature: -30 °C

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1838179 MEAN WELL RPS-300-15-C SMPSU 15 V 20 A 200 W, 300 W

User & Safety Instructions

User & Safety Instructions 1838179 MEAN WELL RPS-300-15-C SMPSU 15 V 20 A 200 W, 300 W

Warranty Terms

Warranty Terms 1838179 MEAN WELL RPS-300-15-C SMPSU 15 V 20 A 200 W, 300 W

Description

To meet the increasing requirements of the medical industry standard power supplies, we have taken on the power supply series RPS-300 with 300 watt output power of mean well into the program. These conform to international medical safety provisions and are approved for medical equipment. The level the BF (Body Floating) with direct patient contact in accordance with the guidelines IEC 60601-1, ANSI/AAMI IT 60601-1 and TÜV EN 60601-1 (Version 3.1) and meet the requirements of 2x MOP.
The power supplies offer an ideal standard power supply solution for application in medical technology, health care, and biochemical test devices, which require a very low leakage current, as well as for medical monitoring devices and autonomous robot. In addition, extremely low power consumption of less than 0.5W meets the requirements of the energy savings.
