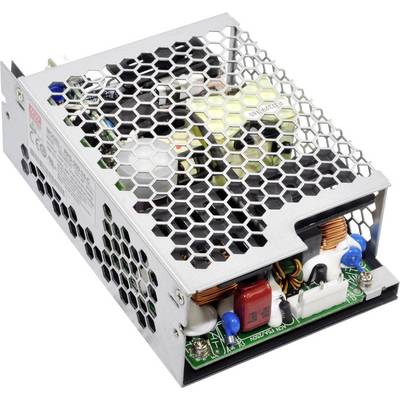

MEAN WELL RPS-300-24 SMPSU 24 V DC 200 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
14-day return policy included
Switching power supply medical
Highlights & Details
- Output 24 V DC /
- Power 200 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Dim
(L x W x H) 127.00 x 76.20 x 35.00 mm
- Output voltage (max.)
24 V DC
- Connection
Pin strip for nylon crimp connectors
200 W
- No. of outputs
1 x
- Type
open
- Weight
369.44 g
- Type
Synchronised
- Width
76.20 mm
- Height
35.00 mm
- Length
127.00 mm
- Type
RPS-300-24
- No. of inputs
1 x
- Output voltage
24 VDC
- Output current (details)
8.33 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1293774 MEAN WELL RPS-300-24 SMPSU 24 V DC 200 W
User & Safety Instructions
User & Safety Instructions 1293774 MEAN WELL RPS-300-24 SMPSU 24 V DC 200 W
Information
Information 1293774 MEAN WELL RPS-300-24 SMPSU 24 V DC 200 W
Warranty Terms
Warranty Terms 1293774 MEAN WELL RPS-300-24 SMPSU 24 V DC 200 W
Description
Open frame · Contact pin for nylon-crimp terminals · Universal input · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · EN60601-1 compliant · Low no load power consumption (by PS-ON control) · Peak load capability · Built-in auxiliary power 12V/0,5A · Stand-by 5V/0,6A
Features
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Conforms to EN 60601-1
- Low idle power (by PS-ON function)
- Peak load function
- Internal auxiliary voltage 12 V/0.5A
- Stand-by: 5V/0.6A
