MEAN WELL RPS-65-24 SMPSU 24 V DC 2.98 A 65 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

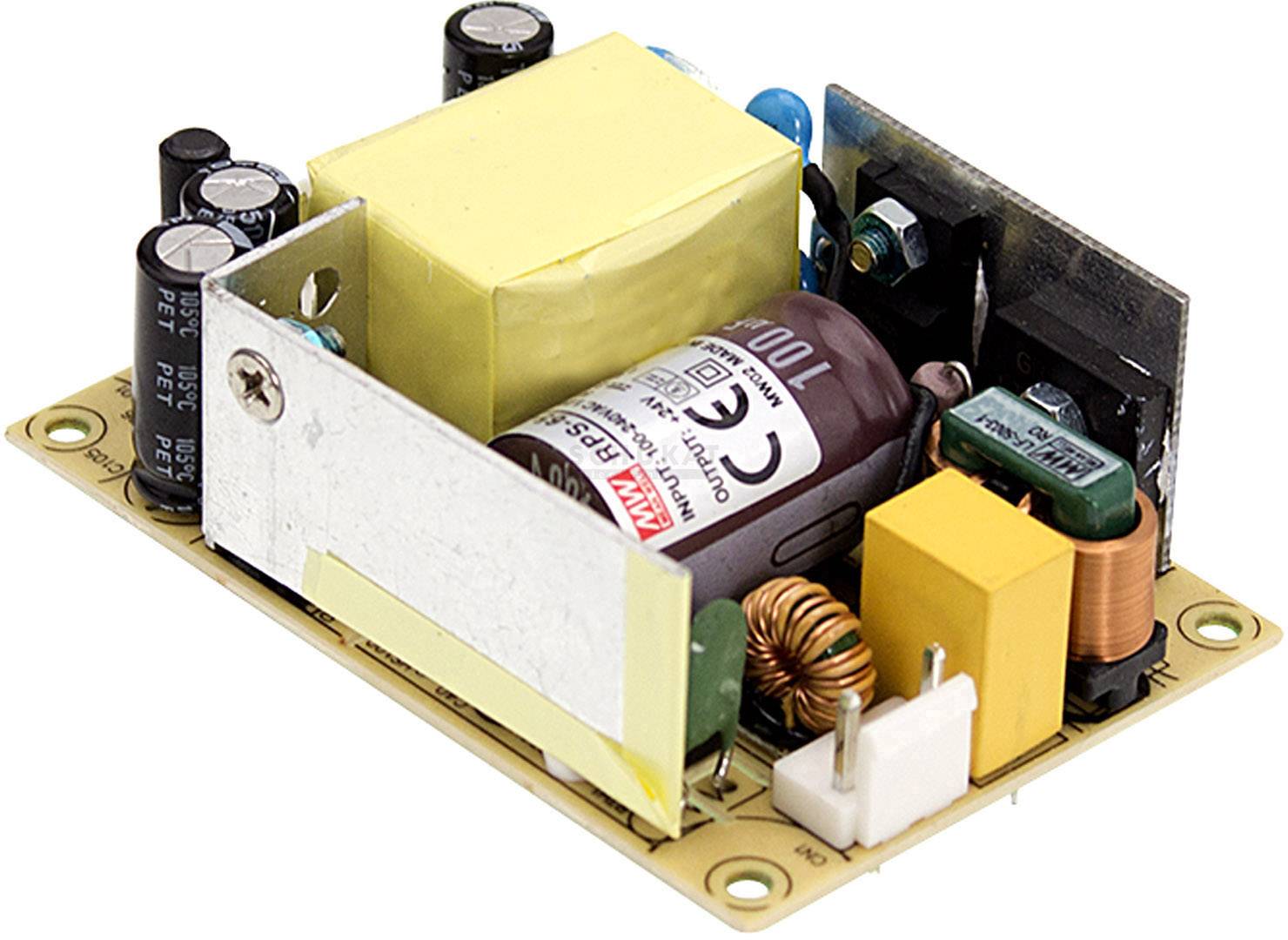

MEANWELL Power Supply Medical Open Frame RPS -65-24
- Output 24 V DC / 2.98 A
- Power 65 W
- Pin strip for nylon crimp connectors
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Max. output current
2.98 A
- Output current (max.) - rounded
2.98 A
- Min. input voltage
80 V AC
- Dim
(L x W x H) 76.2 x 50.8 x 24 mm
- Output voltage (max.)
24 V DC
- Connection
Pin strip for nylon crimp connectors
65 W
- No. of outputs
1 x
- Type
open
- Weight
110 g
- PSU features
Adjustable voltage output
- Type
Pulsed
- Width
50.8 mm
- Height
24 mm
- Length
76.2 mm
- Type
RPS-65-24
- MTBF
959100 h
- No. of inputs
1 x
- PFC
No
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1837987 MEAN WELL RPS-65-24 SMPSU 24 V DC 2.98 A 65 W
User & Safety Instructions
User & Safety Instructions 1837987 MEAN WELL RPS-65-24 SMPSU 24 V DC 2.98 A 65 W
Warranty Terms
Warranty Terms 1837987 MEAN WELL RPS-65-24 SMPSU 24 V DC 2.98 A 65 W
Description
The RPS-65 series of mean corrugated corresponds to international, medical safety provisions and is approved for medical equipment. The level the BF (Body Floating) with direct patient contact in accordance with the guidelines IEC 60601-1 of 3. Version, ANSI/AAMI IT 60601-1 and TÜV EN 60601-1 and meets the requirements of 2x MOP.
In addition, extremely low power consumption of less than resistor 0.1 W meets the requirements of the energy savings.
The RPS-65 series offers an ideal standard power supply solution for application in medical technology, health care, and biochemical test devices, it is in standby mode a very low leakage current and low power consumption require, as well as for medical monitoring devices and autonomous robot.
This text is machine translated.
In addition, extremely low power consumption of less than resistor 0.1 W meets the requirements of the energy savings.
The RPS-65 series offers an ideal standard power supply solution for application in medical technology, health care, and biochemical test devices, it is in standby mode a very low leakage current and low power consumption require, as well as for medical monitoring devices and autonomous robot.
This text is machine translated.
Features
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Conforms to EN 60601-1
- Low idle power
