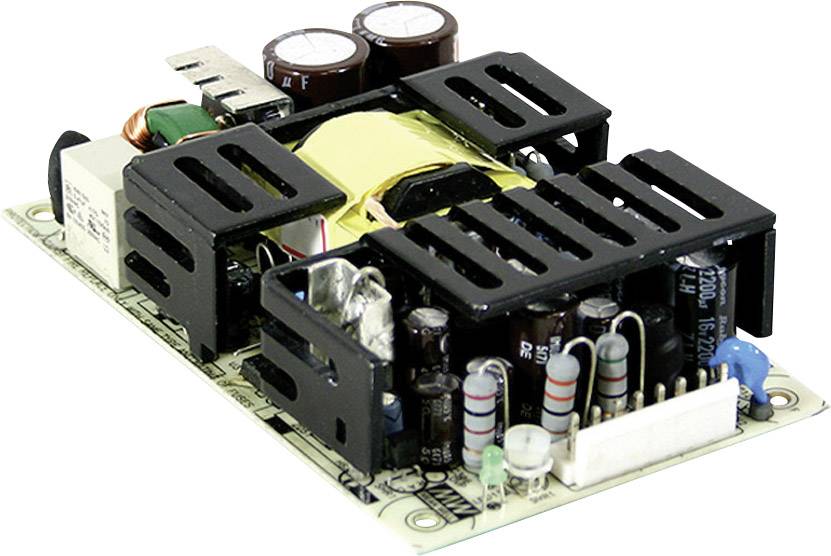

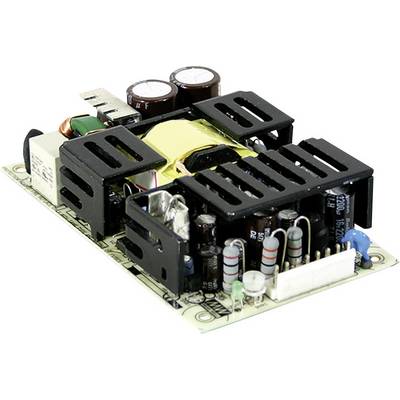

MEAN WELL RPT-75A SMPSU 5 V DC 8 A 68.5 W
EAN:
Part number:
Item no:
Datasheet (PDF)
2 Piece(s)
Sales and shipping:
Number
Total (€ 26.04 / piece)
€
Only 2 Piece(s) available
Highlights & Details
MEANWELL power supply series RPT-75 Medical open-frame Triple Output Power: 72 W
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Conforms to EN 60601-1 (2x MOP)
- This text is machine translated.
Technical specifications
- The sum of the services of the individual channels may not exceed the maximum total power.
- Max. output current
8 A
- Output current (max.) - rounded
8 A
- Dim
(L x W x H) 127 x 76.2 x 31 mm
- Height
31 mm
- Length
127 mm
- Width
76.2 mm
- Connection
Pin strip for nylon crimp connectors
- Type
open
- Type
RPT-75A
- MTBF
521200 h
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
90 V AC
127 V DC
- Output current 2 (max.)
4 A
- Output current 2 (min.)
0.2 A
- Output current 3 (max.)
1 A
- Output current 3 (min.)
0.1 A
- Output current (min.)
0.6 A
- Output voltage 2 (max.)
12 V DC
- Output voltage 2 (min.)
12 V DC
- Output voltage 3 (max.)
-5 V DC
- Output voltage 3 (min.)
-5 V DC
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- No. of inputs
1 x
- No. of outputs
3 x
68.5 W
- Type
Pulsed
- PFC
No
- Max. temperature
+70 °C
- Min. temperature
-20 °C
- Weight
250 g
- Product type
SMPSU
Documents & Downloads
Datasheet
Datasheet 2113957 MEAN WELL RPT-75A SMPSU 5 V DC 8 A 68.5 W
User & Safety Instructions
User & Safety Instructions 2113957 MEAN WELL RPT-75A SMPSU 5 V DC 8 A 68.5 W
Warranty Terms
Warranty Terms 2113957 MEAN WELL RPT-75A SMPSU 5 V DC 8 A 68.5 W
Description
Features
- Open design (open frame)
- Pin strip connections for nylon crimp connectors
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Conforms to EN 60601-1 (2x MOP)
Hints
These power supplies are designed for installation in devices.
