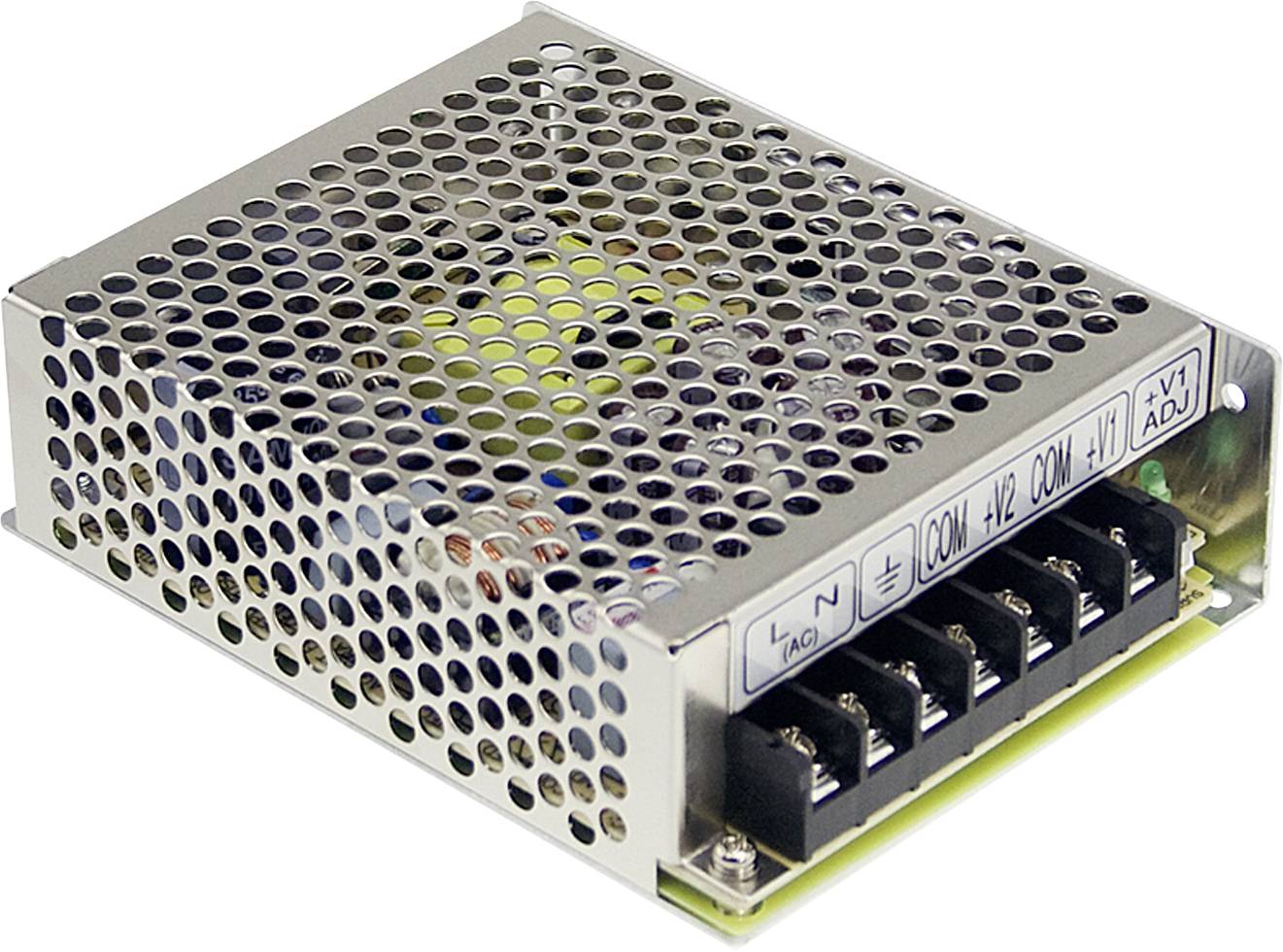

MEAN WELL RS-50-48 SMPSU 48 V DC 52 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details
Switching power supply case
- Output 48 V DC /
- Power 52 W
- Screw terminal
Technical specifications
- Product type
SMPSU
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- Dim
(L x W x H) 99.00 x 97.00 x 36.00 mm
- Output voltage (max.)
48 V DC
- Connection
Screw terminal
52 W
- No. of outputs
1 x
- Type
closed
- Weight
411.11 g
- Type
Synchronised
- Width
97.00 mm
- Height
36.00 mm
- Length
99.00 mm
- Type
RS-50-48
- No. of inputs
1 x
- Output voltage
48 VDC
- Output current (details)
1.1 A
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1293112 MEAN WELL RS-50-48 SMPSU 48 V DC 52 W
User & Safety Instructions
User & Safety Instructions 1293112 MEAN WELL RS-50-48 SMPSU 48 V DC 52 W
Warranty Terms
Warranty Terms 1293112 MEAN WELL RS-50-48 SMPSU 48 V DC 52 W
Description
Enclosed case, screw terminals · Universal input · Overload protection, pulsing hiccup shutdown, auto recovery · Protections: short circuit/over load/over voltage · Long life 105°C electrolytic capacitors
Features
- Closed design (case), screw terminals
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Longlife 105°C electrolytic capacitors
