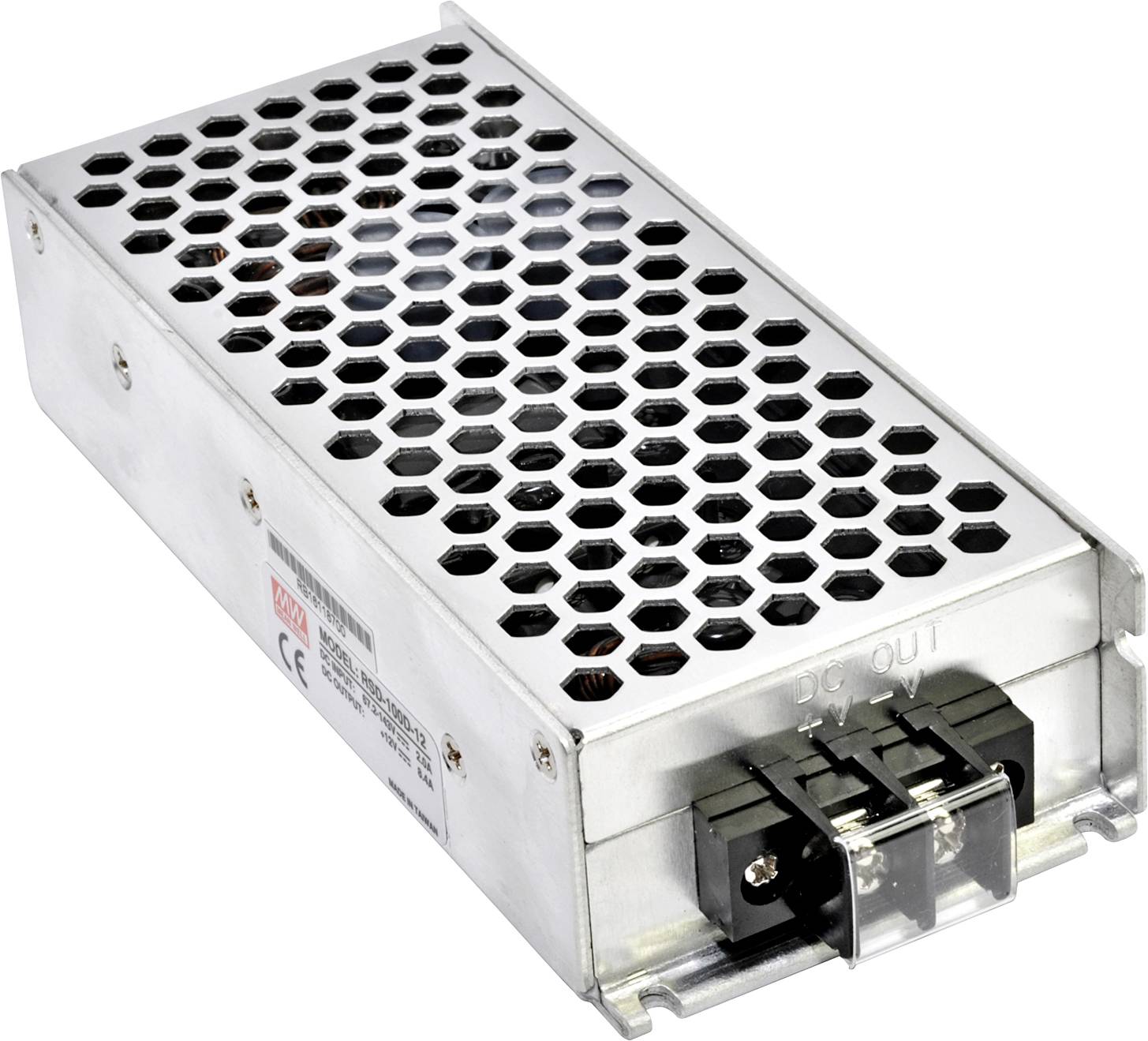

MEAN WELL RSD-100B-5 DC/DC converter 5 V DC 100 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Product type
DC/DC converter
- Type
RSD-100B-5
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
100 W
- Connection
Screw terminal
- Dim
(L x W x H) 161.00 x 68.00 x 36.00 mm
- Height
36.00 mm
- Length
161.00 mm
- Width
68.00 mm
- Output voltage (max.)
5 V DC
- Weight
562.50 g
- Content
1 pc(s)
- No. of inputs
1 x
- Output current (details)
20 A
- Type
Getakted
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1292404 MEAN WELL RSD-100B-5 DC/DC converter 5 V DC 100 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1292404 MEAN WELL RSD-100B-5 DC/DC converter 5 V DC 100 W No. of outputs: 1 x Content 1 pc(s)
Information
Information 1292404 MEAN WELL RSD-100B-5 DC/DC converter 5 V DC 100 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1292404 MEAN WELL RSD-100B-5 DC/DC converter 5 V DC 100 W No. of outputs: 1 x Content 1 pc(s)
Description
Enclosed case, screw terminals · Protections: short circuit, overload, over voltage, input reverse polaritya · Wide input voltage range 2:1 · DC decoupling of input and output · Input/output insulation 1500V · Regulated output voltage · Short-circuit proof · Compliance to EN50155
Features
- Closed design (case), screw terminals
- LED signal lamp for operation display
- Overload protection through Sttombegrenzung, auto recovery
- Wide input voltage range 2:1
- Galvanic isolation of input and output
- Input/output insulation 4000 V DC
- Regulated output voltage
- Short-circuit proof
- Conforms to EN 50157
