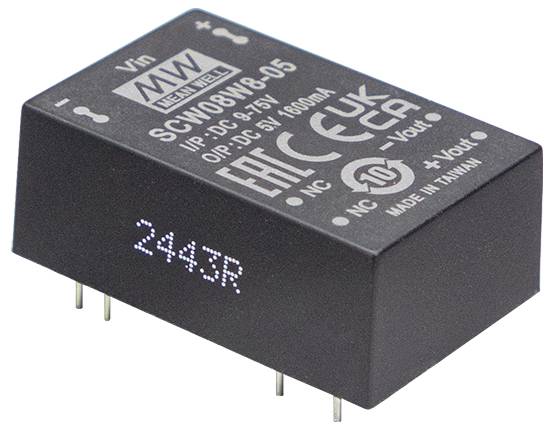

MEAN WELL SCW08W8-05 DC/DC converter 24 V 5 V 1.600 A 8 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
SCW08W8-05
- Nominal voltage
24 V
- Min. input voltage
9 V
- Input voltage (max.)
75 V
- Output voltages
5 V
- Max. output current
1.600 A
- Output current (max.) - rounded
1.6 A
8 W
- Enclosure
DIP 24
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 31.8 x 20.3 x 12.2 mm
- Height
12.2 mm
- Length
31.8 mm
- Width
20.3 mm
- RoHS-compliant
Yes
- Weight
17.5 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556708 MEAN WELL SCW08W8-05 DC/DC converter 24 V 5 V 1.600 A 8 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556708 MEAN WELL SCW08W8-05 DC/DC converter 24 V 5 V 1.600 A 8 W Content 1 pc(s)
Description
The SCW08W8 series is an insulated and regulated 8W DC/DC converter module with DIP24 casing. They are characterized by international standard pins, a high efficiency of up to 86%, a wide operating temperature range of -40 to +90 °C, an insulation voltage of 3 kVDE I/P-O/P, compliance with the BS EN/EN55022 class A standard without additional components, short-circuit protection in continuous operation, an extremely wide input range of 8:1 (9–75 V) and different output voltages 3.3 V/5 V/9 V/12 V/15 V for one output. They are suitable for all types of systems, e.g. in industrial control, telecommunications, distributed power supply architectures, etc.
