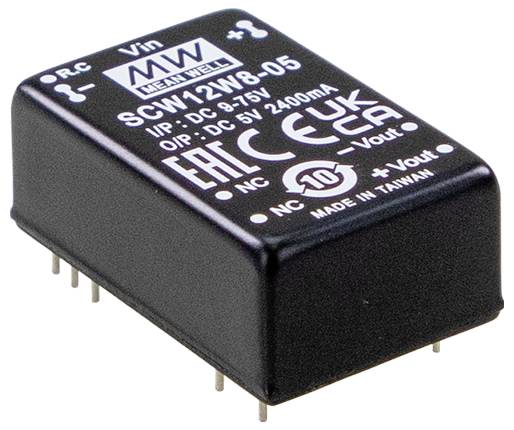

MEAN WELL SCW12W8-05 DC/DC converter 24 V 5 V 2.400 A 12 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- REMOTE Function
- Product type
DC/DC converter
- Type
SCW12W8-05
- Nominal voltage
24 V
- Min. input voltage
9 V
- Input voltage (max.)
75 V
- Output voltages
5 V
- Max. output current
2.400 A
- Output current (max.) - rounded
2.4 A
12 W
- Enclosure
DIP 24
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 31.8 x 20.3 x 12.2 mm
- Height
12.2 mm
- Length
31.8 mm
- Width
20.3 mm
- RoHS-compliant
Yes
- Weight
17.5 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556716 MEAN WELL SCW12W8-05 DC/DC converter 24 V 5 V 2.400 A 12 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556716 MEAN WELL SCW12W8-05 DC/DC converter 24 V 5 V 2.400 A 12 W Content 1 pc(s)
Description
The SCW12W8 series includes isolated and regulated 12W DC/DC converter modules in the DIP24 package. They are characterized by international standard pinning, a high degree of efficiency of up to 87%, a wide operating temperature range of -40 to +85 °C, an insulation voltage of 3 kVDE I/P-O/P, compliance with the BS EN/EN55022 class A standard without additional components, short-circuit protection in continuous operation, a 8:1 (9-75 V) Ultra wide input range and various output voltages, 3.3 V/5 V/9 V/12 V/15 V for single outputs from suitable for all types of systems, such as industrial controls, telecommunications, distributed power architectures, etc.
