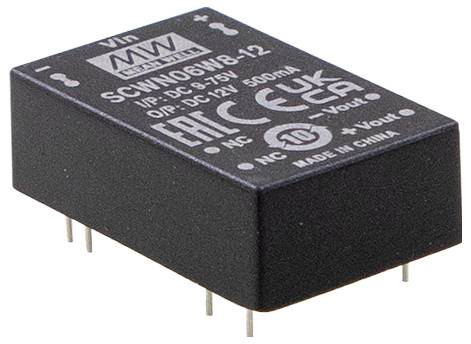

MEAN WELL SCWN06W8-12 DC/DC converter 24 V 12 V 0.500 A 6 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
SCWN06W8-12
- Nominal voltage
24 V
- Min. input voltage
9 V
- Input voltage (max.)
75 V
- Output voltages
12 V
- Max. output current
0.500 A
- Output current (max.) - rounded
500 mA
6 W
- Enclosure
DIP 24
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
95 °C
- Dim
(L x W x H) 31.8 x 20.3 x 10.2 mm
- Height
10.2 mm
- Length
31.8 mm
- Width
20.3 mm
- RoHS-compliant
Yes
- Weight
12.5 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556702 MEAN WELL SCWN06W8-12 DC/DC converter 24 V 12 V 0.500 A 6 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556702 MEAN WELL SCWN06W8-12 DC/DC converter 24 V 12 V 0.500 A 6 W Content 1 pc(s)
Description
The SCWN06W8 series contains insulated and regulated 6W DC/DC converter modules in the DIP24 enclosure. They have international standard pins, high efficiency up to 86%, wide operating temperature range from -40 to +95 °C, 3 kV DC isolation voltage between input and output, compliance with BS EN/EN55022 class B without additional components, short-circuit protection in continuous operation, an extremely wide input range of 8:1 (9–75 V) and various output voltages: 3.3 V/5 V/12 V/15 V for a single output suitable for all types of systems, such as industrial control, telecommunications, distributed power architecture, etc.
