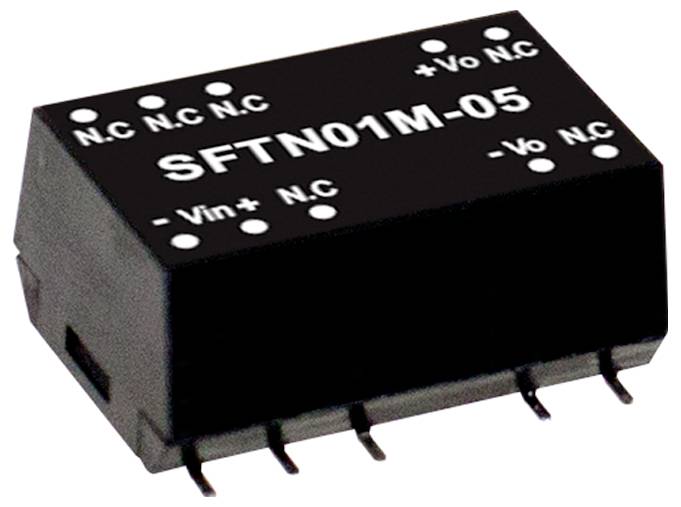

Image similar
MEAN WELL SFTN01M-15SC DC/DC converter 12 V 12 V 0.067 A 1 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
DC/DC converter
- Type
SFTN01M-15SC
- Nominal voltage
12 V
- Min. input voltage
10 V
- Input voltage (max.)
13.2 V
- Output voltages
12 V
- Max. output current
0.067 A
- Output current (max.) - rounded
67 mA
1 W
- Enclosure
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Dim
(L x W x H) 15.24 x 10.9 x 7.1 mm
- Height
7.1 mm
- Length
15.24 mm
- Width
10.9 mm
- RoHS-compliant
Yes
- Weight
1.2 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556757 MEAN WELL SFTN01M-15SC DC/DC converter 12 V 12 V 0.067 A 1 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556757 MEAN WELL SFTN01M-15SC DC/DC converter 12 V 12 V 0.067 A 1 W Content 1 pc(s)
Description
The SFTN01 series includes isolated and unregulated 1W DC/DC converters with SMD chassis. It has international standard pins, a high degree of efficiency of up to 82%, a wide operating temperature range of -40-+90°C and -40 to -105°C, 3 kVDC I/P-O/P isolation voltage, compliance with the BS EN/EN55022 class B without additional components, short-circuit protection, etc. The models offer different input voltages of 5V/12V/24V+10% and various output voltages, 5V/9V/12V/15V, which are suitable for all types of systems, such as industrial control, telecommunications, distributed power systems, etc.
