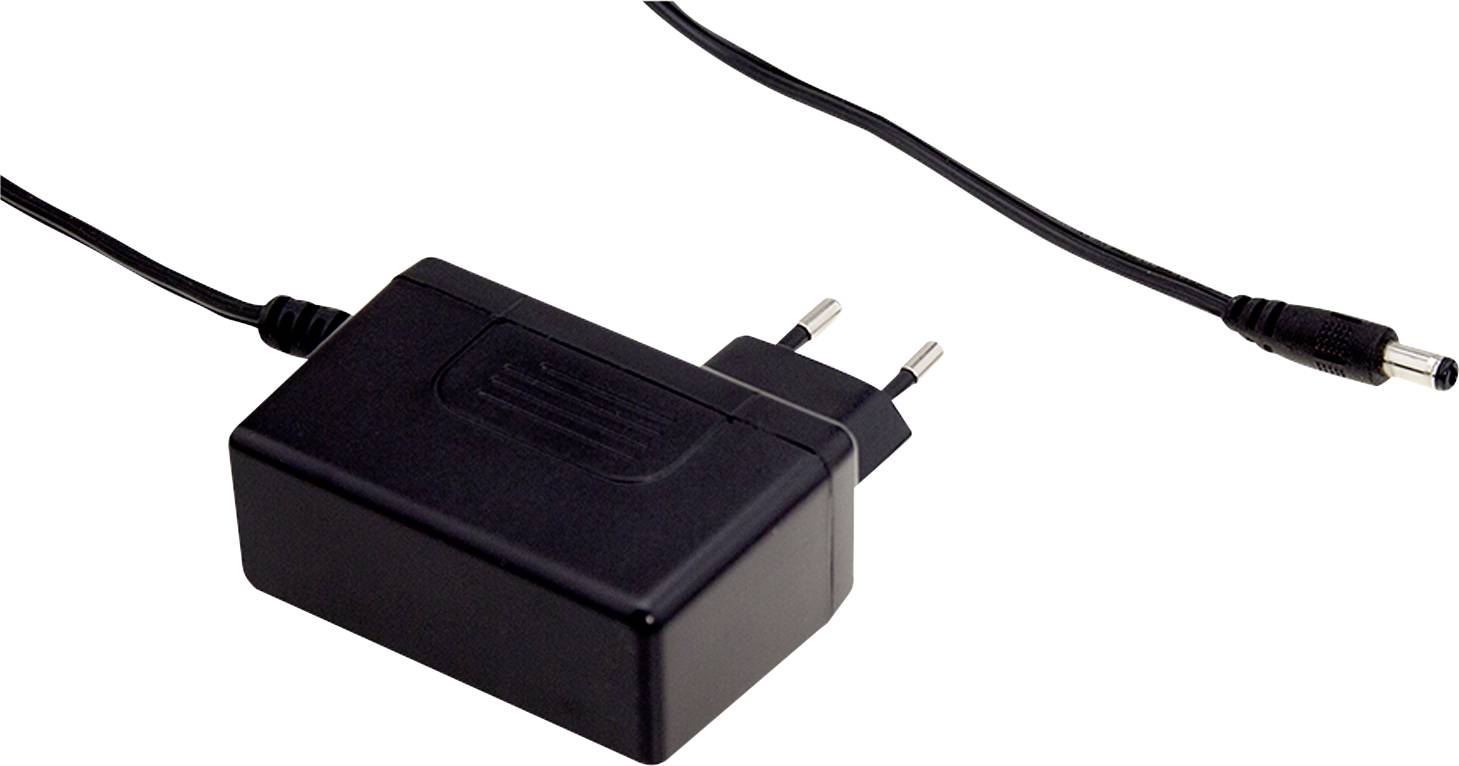

MEAN WELL SGA25E09-P1J Mains PSU (fixed voltage) 9 V DC 2.77 A 22 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean corrugated plug power supply SGA 25 E
- Plug power supply with Euro plug
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Insulation category II
- Low idle power
- Energy efficiency level VI
Technical specifications
- Product type
Mains PSU (fixed voltage)
- Type
Pulsed
- Max. output current
2.77 A
- Output voltage
9 V DC
- Output current (max.) - rounded
2.77 A
- Output
5.5/2.1 coaxial connector
- Input voltage
115 V AC
230 V AC
22 W
- Dim
(L x W x H) 75.5 x 32 x 47.5 mm
- Connection
Euro plug
- No. of outputs
1 x
- No. of inputs
1 x
- Input voltage (max.)
264 V AC
- Min. input voltage
90 V AC
- EuP Status
Level VI
- Weight
158 g
- Cable length
1.00 m
- Width
32 mm
- Height
47.5 mm
- Length
75.5 mm
- Type
SGA25E09-P1J
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1838210 MEAN WELL SGA25E09-P1J Mains PSU (fixed voltage) 9 V DC 2.77 A 22 W
User & Safety Instructions
User & Safety Instructions 1838210 MEAN WELL SGA25E09-P1J Mains PSU (fixed voltage) 9 V DC 2.77 A 22 W
Information
Information 1838210 MEAN WELL SGA25E09-P1J Mains PSU (fixed voltage) 9 V DC 2.77 A 22 W
Warranty Terms
Warranty Terms 1838210 MEAN WELL SGA25E09-P1J Mains PSU (fixed voltage) 9 V DC 2.77 A 22 W
Description
We have very compact class 2 plug-in power supplies of the series SGA 25 E of mean well.
The plug-in power supplies have a wide input voltage range of 90 V AC to 264 V AC and an output power of 25 W.
With up to 88% effectiveness and idle power of less than 0.075 W corresponds to the Energy Efficiency Level VI.
The plug-in power supplies of the series SGA from mean corrugated are available with output voltages of 5 V DC to 48V DC directly from stock.
This text is machine translated.
The plug-in power supplies have a wide input voltage range of 90 V AC to 264 V AC and an output power of 25 W.
With up to 88% effectiveness and idle power of less than 0.075 W corresponds to the Energy Efficiency Level VI.
The plug-in power supplies of the series SGA from mean corrugated are available with output voltages of 5 V DC to 48V DC directly from stock.
This text is machine translated.
Features
- Plug power supply with Euro plug
- Universal input
- Overload protection by switching off, auto recovery
- Protected against short circuit, overload, over voltage
- Insulation category II
- Low idle power
- Energy efficiency level VI
