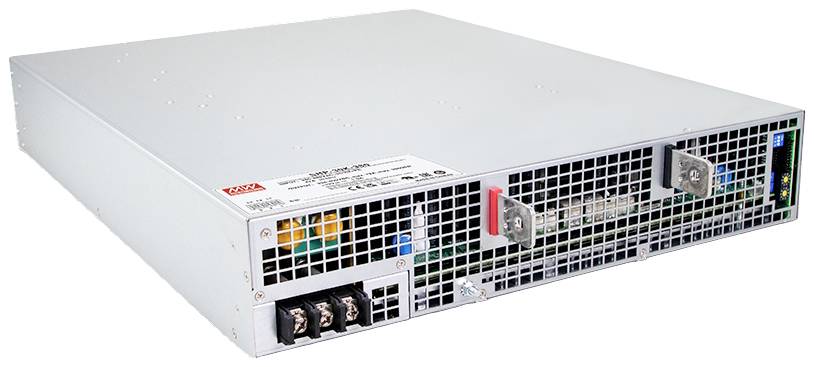

Industrial switch-mode power supply with ventilated grey metal enclosure, connection terminals at the front.

Image similar

Industrial switch-mode power supply with ventilated grey metal enclosure, connection terminals at the front.

Image similar

MEAN WELL

Datasheet (PDF)

English

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Mean Well SHP-30K-HV SNT case single out

Output 115 V / 261 A
Power 30000 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 530 V AC

Max. output current: 261 A

Output current (max.) - rounded: 261 A

Min. input voltage: 340 V AC

Dim: (L x W x H) 540 x 424 x 83.5 mm

Output voltage (max.): 115 V

Connection: Screw terminal

: 30000 W

No. of outputs: 1 x

Type: closed

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -30 °C

Weight: 23400 g

Width: 424 mm

Height: 83.5 mm

Length: 540 mm

Type: SHP-30K-115

MTBF: 20900 h

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

English

Datasheet 3031835 MEAN WELL SHP-30K-115 SMPSU 115 V 261 A 30000 W

User & Safety Instructions

User & Safety Instructions 3031835 MEAN WELL SHP-30K-115 SMPSU 115 V 261 A 30000 W

Warranty Terms

European union

Warranty Terms 3031835 MEAN WELL SHP-30K-115 SMPSU 115 V 261 A 30000 W
