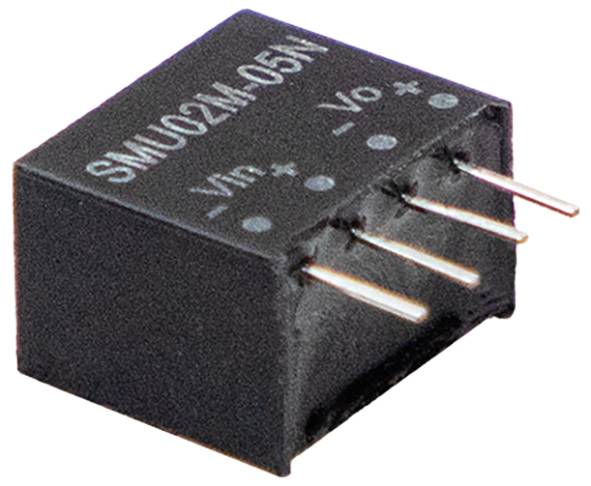

MEAN WELL SMU02M-05N DC/DC converter 5 V 0.4 A 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- MTBF 2,000,000 h
- Input voltage ratio 1:1
- Power output 2 W
- Product type
DC/DC converter
- Type
SMU02M-05N
- Min. input voltage
10.8 V
- No. of outputs
1 x
- Output voltages
5 V
- Max. output current
0.4 A
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
86 %
2 W
- Insulation voltage
1500 V DC
- Enclosure
SIP 4
- Connection
THT
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+150 °C
- Dim
(L x W x H) 11.7 x 7.5 x 10.2 mm
- Height
10.2 mm
- Length
11.7 mm
- Width
7.5 mm
- Output voltage (max.)
5 V
- Output voltage (min.)
10.8 V
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3431191 MEAN WELL SMU02M-05N DC/DC converter 5 V 0.4 A 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3431191 MEAN WELL SMU02M-05N DC/DC converter 5 V 0.4 A 2 W No. of outputs: 1 x Content 1 pc(s)
Description
The SMU02-N series is an unregulated 2 Watt DC/DC converter in a standard SIP 4 plastic case with an input voltage range of +10%. It features an insulated voltage of 1500VDC, an extremely low no-load current and a wide operating temperature range of -40 to +105°C and is suitable for all types of systems, such as industrial controls, automation ranges, etc.
