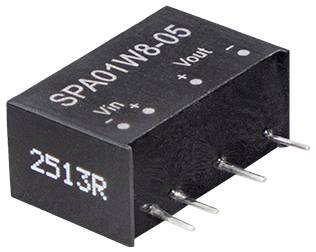

MEAN WELL SPA01W8-12 DC/DC converter 12 V 0.083 A 1 W Content 1 pc(s)

The series SPA01W8 is a 1W insulated and regulated module type DC-DC converter with SIP6-housing. It has international standard pinning, high efficiency of up to 80%, a wide operating temperature range from -40 to 95°C, an insulation voltage of 1.5 kV DC between input and output sides, compliance with BS EN/EN55022 standard for class A radiated EMC disturbances without additional components, Overload and short-circuit protection in continuous operation, etc. The models cover an input voltage of 9-75 VDC with a wide input voltage ratio of 8:1 and offer various output voltages of 3.3 V/5 V/9 V/12 V/15 V/24 V, which are suitable for all types of systems, such as industrial control, telecommunications, distributed energy architecture and so on.
