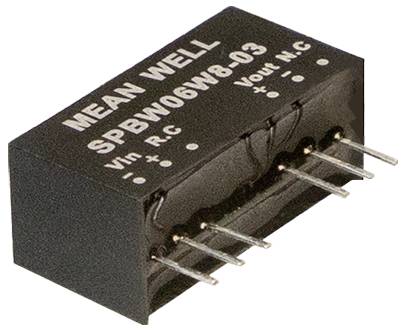

MEAN WELL SPBW06W8-12 DC/DC converter 12 V 0.500 A 6 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- REMOTE Function
- Product type
DC/DC converter
- Type
SPBW06W8-12
- Output voltages
12 V
- Max. output current
0.500 A
- Output current (max.) - rounded
500 mA
6 W
- Enclosure
SIP 8
- Dim
(L x W x H) 21.8 x 9.2 x 11.1 mm
- Height
11.1 mm
- Length
21.8 mm
- Width
9.2 mm
- RoHS-compliant
Yes
- Weight
4.8 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3556691 MEAN WELL SPBW06W8-12 DC/DC converter 12 V 0.500 A 6 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3556691 MEAN WELL SPBW06W8-12 DC/DC converter 12 V 0.500 A 6 W Content 1 pc(s)
Description
The SPBW06W8 series is an isolated and regulated 6 W module DC-DC converter in the SIP8 package. It has an international standard pinning, a high efficiency of up to 87%, a wide operating temperature range of -40-+85'C, 3Vdc I/P-O/P isolation voltage, conformity with BS EN/EN55032 radiated class A/B with additional components, permanent short-circuit protection, etc. SPBW06W8 have an ultra-wide input range of 8:1 (9-75Vdc) and various output voltages, +3.3V/+5V/+12V/+15V, which are suitable for all types of systems, such as industrial control, telecommunications, distributed power architectures, etc.
