MEAN WELL SUS01O-12 DC/DC converter 48 V 12 V 0.084 A 1 W Content 1 pc(s)

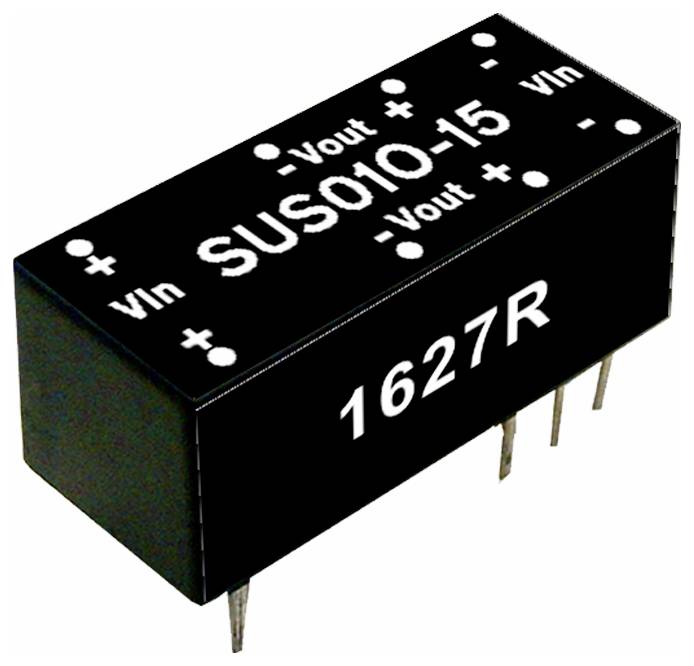

A black electronic component labeled 'SUS010-15' with pins for input and output voltage connections and marked '1627R'.

A black electronic component labeled 'SUS010-15' with pins for input and output voltage connections and marked '1627R'.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: DC/DC converter

Type: SUS01O-12

Nominal voltage: 48 V

Min. input voltage: 43.2 V

Input voltage (max.): 52.8 V

Output voltages: 12 V

Max. output current: 0.084 A

Output current (max.) - rounded: 84 mA

: 1 W

Enclosure: DIP 16

Operating temperature (min.): -25 °C

Operating temperature (max.): 71 °C

Dim: (L x W x H) 22.6 x 9.9 x 8.9 mm

Height: 8.9 mm

Length: 22.6 mm

Width: 9.9 mm

RoHS-compliant: Yes

Weight: 3.1 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3556741 MEAN WELL SUS01O-12 DC/DC converter 48 V 12 V 0.084 A 1 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3556741 MEAN WELL SUS01O-12 DC/DC converter 48 V 12 V 0.084 A 1 W Content 1 pc(s)

What kind of DC/DC Converters are you looking for?
