Buy MEAN WELL UHP-1000-48 SMPSU 48 V DC 21 A 1008 W

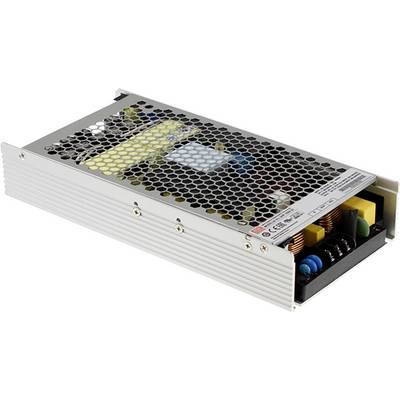

A rectangular, ventilated power supply with a metal mesh cover and visible electronic components on the open side.

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

17 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 239.50 / piece)

€ 239.50

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

MEAN CORRUGATED switched-mode power supply series UHP-1000U-bracket Single Output output: 1000 W with PFC

Output 48 V DC / 21 A
Power 1008 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 21 A

Output current (max.) - rounded: 21 A

Min. input voltage: 90 V AC
127 V DC

Dim: (L x W x H) 240 x 115 x 41 mm

Output voltage (max.): 48 V DC

Connection: Screw terminal

: 1008 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): +70 °C

Operating temperature (min.): -30 °C

Weight: 1740 g

PSU features: Adjustable voltage output

Type: Pulsed

Width: 115 mm

Height: 41 mm

Length: 240 mm

Type: UHP-1000-48

MTBF: 2188600 h

PFC: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2143307 MEAN WELL UHP-1000-48 SMPSU 48 V DC 21 A 1008 W

User & Safety Instructions

User & Safety Instructions 2143307 MEAN WELL UHP-1000-48 SMPSU 48 V DC 21 A 1008 W

Warranty Terms

Warranty Terms 2143307 MEAN WELL UHP-1000-48 SMPSU 48 V DC 21 A 1008 W

Description

With the newly recorded power supplies of the series UHP-1000 rounds off the output power of the UHP MEAN CORRUGATED family on 1000 W upwards. The power supplies of the series UHP, narrow U-bracket design with a low profile of 41 mm. The series has a high degree of efficiency of up to 96% with a high operating temperature from -30 to +70 °C at simple air convection. The mean corrugated power supplies for peak loads a power reserve of 150% (100ms) of the rated current is available and can be used up to 5000 m height. The power supplies of the series UHP conform to international standards and are suitable for a wide range of industrial applications.

This text is machine translated.
