Buy MEAN WELL UHP-200-24 SMPSU 25.2 V DC 8.4 A

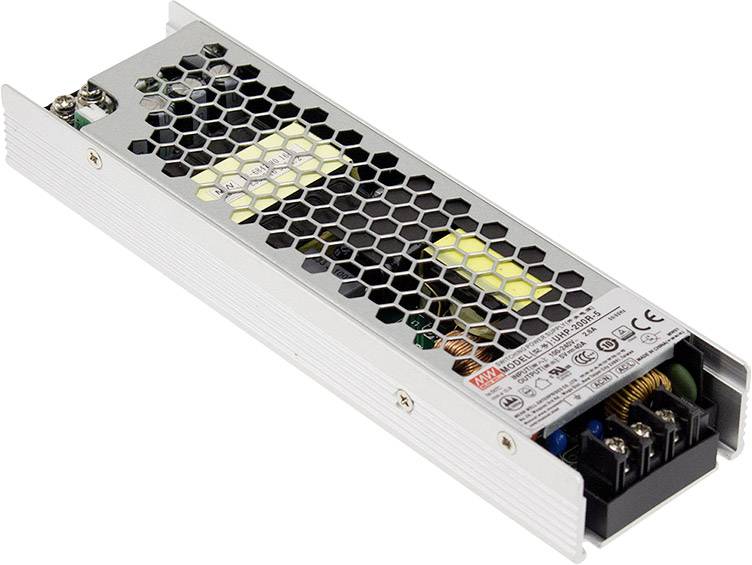

Slim power supply with honeycomb ventilation, technical specifications and safety signs on the top surface. Suitable for electronic applications.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MEANWELL Power Supply UHP-200-24

Output 25.2 V DC / 8.4 A
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 90 V AC

Max. output current: 8.4 A

Output current (max.) - rounded: 8.4 A

Min. input voltage: 264 V AC

Dim: (L x W x H) 194 x 55 x 26 mm

Output voltage (max.): 25.2 V DC

Connection: Screw terminal

No. of outputs: 1 x

Type: closed

Operating temperature (max.): -30 °C

Max. operating temperature (derating): 70 °C

Weight: 468 g

Width: 55 mm

Height: 26 mm

Length: 194 mm

Type: UHP-200-24

Output voltage (min.): 22.8 V DC

PFC: Yes (built-in)

Documents & Downloads

Datasheet

Datasheet 1838286 MEAN WELL UHP-200-24 SMPSU 25.2 V DC 8.4 A

User & Safety Instructions

User & Safety Instructions 1838286 MEAN WELL UHP-200-24 SMPSU 25.2 V DC 8.4 A

Warranty Terms

Warranty Terms 1838286 MEAN WELL UHP-200-24 SMPSU 25.2 V DC 8.4 A

Description

The power supplies of the series UHP-200, narrow U-bracket design with a low profile of 26 mm. The series has a high degree of efficiency of up to 94% with a high operating temperature from -30 to +70 °C at simple air convection. The mean corrugated power supplies for peak loads a power reserve of 150% (100ms) of the rated current is available and can be used up to 5000 m height. The versions UHP-200 R hatn additionally a DC-OK-signal and a redundancy function.
The power supplies of the series UHP meet the international standards EN 60950-1, EN 60335-1, UL 60950-1 and GB 3346 relationship and are suitable for a wide range of industrial applications.

This text is machine translated.
