Buy MEAN WELL UHP-200R-5 SMPSU 5 V DC 40 A 200 W

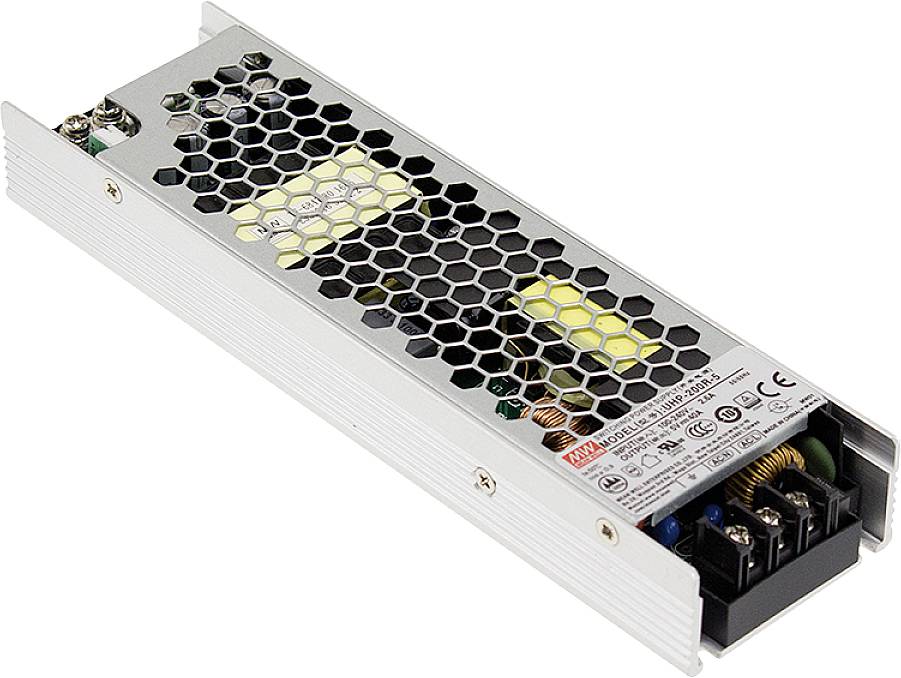

A slim power supply with a perforated metal casing, visible electronic components and connections, suitable for various applications.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

MEANWELL switched-mode power supplies series UHP-200R U-bracket Single Output Power: 200W

Output 5 V DC / 40 A
Power 200 W
Screw terminal

Technical specifications

Product type: SMPSU

Input voltage (max.): 264 V AC
370 V DC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

Min. input voltage: 90 V AC
127 V DC

Dim: (L x W x H) 194 x 55 x 26 mm

Output voltage (max.): 5 V DC

Connection: Screw terminal

: 200 W

No. of outputs: 1 x

Type: closed

Operating temperature (max.): +70 °C

Operating temperature (min.): -30 °C

Weight: 468 g

PSU features: Adjustable voltage output

Type: Pulsed

Width: 55 mm

Height: 26 mm

Length: 194 mm

Type: UHP-200R-5

MTBF: 257000 h

PFC: Yes

Documents & Downloads

Datasheet

Datasheet 2237835 MEAN WELL UHP-200R-5 SMPSU 5 V DC 40 A 200 W

User & Safety Instructions

User & Safety Instructions 2237835 MEAN WELL UHP-200R-5 SMPSU 5 V DC 40 A 200 W

Warranty Terms

Warranty Terms 2237835 MEAN WELL UHP-200R-5 SMPSU 5 V DC 40 A 200 W

Description

WITH the newly recorded contact-cooled and therefore fanless power supplies of the UHP-200R series, MEAN WELL rounds off the output power of the UHP family to 200W.
The UHP series power supplies offer a low profile U-bracket design with a low profile of 26mm. The series has a high efficiency of up to 94% and with a high operating temperature of up to -30 to +70°C. The UHP-200R version also has a DC-OK signal and a redundancy function.
The UHP series of power supplies meet international standards and are suitable for a wide range of industrial applications.

This text is machine translated.
