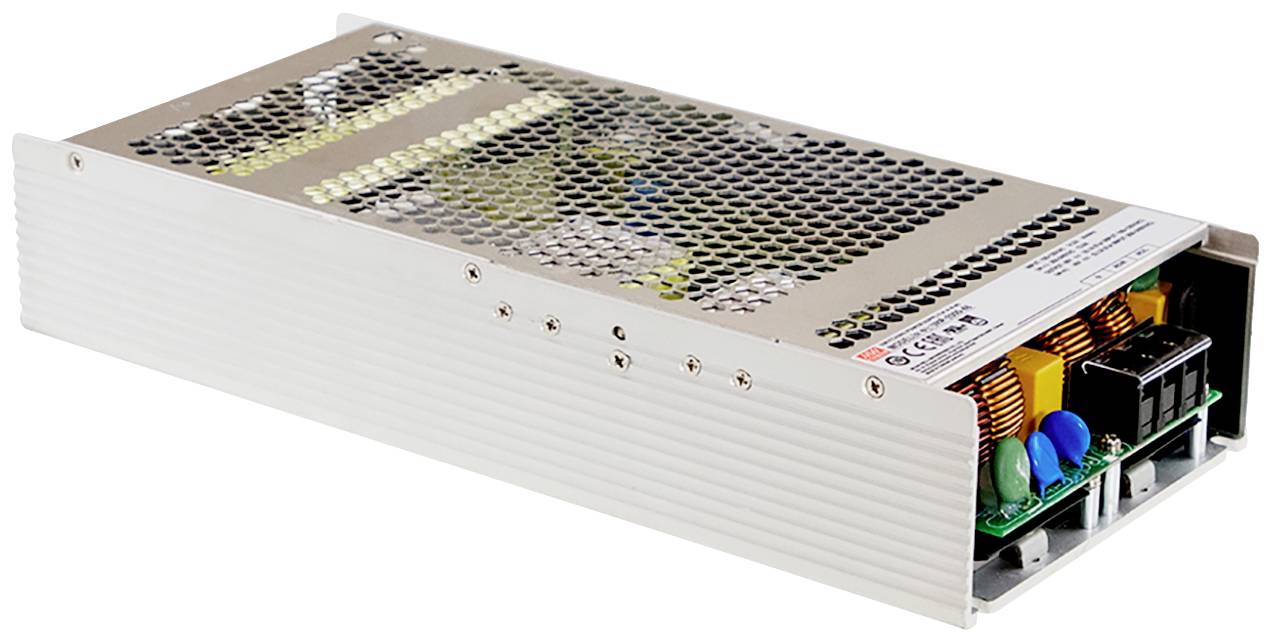

MEAN WELL UHP-2500-36 LED driver 2498.4 W 69.4 A 36 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well AC/DC-industrial power supply U-bracket 2,498.4 W 36 V 69.4 a
- 36 V
- 69.4 A
Technical specifications
- Connector type, input: Screw terminalInput current 14.3 AConnector type, output: Screw terminalEfficiency 95 %Leakage current, max. 0.75 mASwitch-on current, max. 60 A
- Product type
LED driver
- Dim
(L x W x H) 310 x 140 x 60 mm
- Output voltage (max.)
36 V
- Output voltage (min.)
36 V
- Max. output current
69.4 A
- Output current (max.) - rounded
69.4 A
Protection class I
- Connection
Screw terminal
- Max. power
2498.4 W
- No. of outputs
1 x
- Output current (min.)
69.4 A
- Input voltage (max.)
264 V AC
370 V DC
- Min. input voltage
90 V AC
250 V DC
- Weight
3500 g
- Power (min.)
2498.4 W
- Power range
2498.4 up to 2498.4 W
- Width
140 mm
- Height
60 mm
- Length
310 mm
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2749205 MEAN WELL UHP-2500-36 LED driver 2498.4 W 69.4 A 36 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2749205 MEAN WELL UHP-2500-36 LED driver 2498.4 W 69.4 A 36 V 1 pc(s)
Warranty Terms
Warranty Terms 2749205 MEAN WELL UHP-2500-36 LED driver 2498.4 W 69.4 A 36 V 1 pc(s)
Description
Features
- Application: ITE, IndustryU-bracket casing
- This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
