Buy MEAN WELL VRLA charger ENC-240-12 12 V Charging current (max.) 16 A

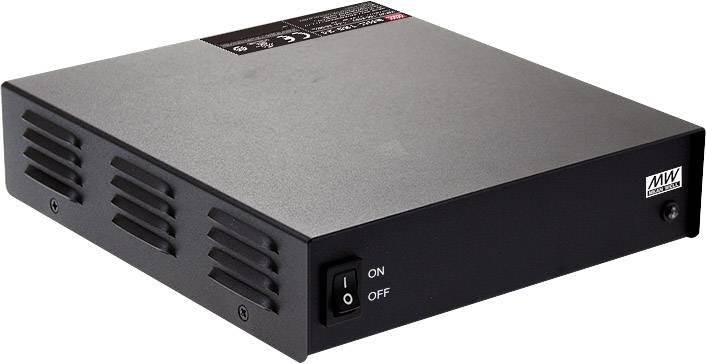

A rectangular, black electronic device with ventilation slots on the sides and a power switch on the front.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Lead-acid battery charger ENC-240-12

3-stage programmable charging curve
Built-in active PFC-Function
Universal AC input.

Technical specifications

Output voltage 9 to, 15 V
Power 230.4 W
End-of-charge voltage 15.5, 18.2 V
Temperature range: -30 to +70 °C
Efficiency 91 %

Product type: VRLA charger

Charger features: PC interface
Trickle charging
Selectable charging current

Matching rechargeable battery: SLA
Lead-acid
Lead acid membrane
Li-ion
LiFePO

Suitable for lead-type rechargeables: 12 V

Recommended battery capacity (min.): 60 Ah

Recommended battery capacity (max.): 170 Ah

Charging slots: 1

Operating voltage: 90 - 264 V

Charging current (max.): 16 A

Charging current at 12 V: 16 A

Charge Voltage: programmierbar

Width: 178 mm

Height: 45.5 mm

Depth: 192 mm

Weight: 1230 g

Dim: (W x H x D) 178 x 45.5 x 192 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1761296 MEAN WELL VRLA charger ENC-240-12 12 V Charging current (max.) 16 A

User & Safety Instructions

User & Safety Instructions 1761296 MEAN WELL VRLA charger ENC-240-12 12 V Charging current (max.) 16 A

Warranty Terms

Warranty Terms 1761296 MEAN WELL VRLA charger ENC-240-12 12 V Charging current (max.) 16 A

Description

Innovative charger for lead-acid, Li-ion, LiFePO 4 batteries.
The microprocessor controlled charger has a 3-stage programmable charging curve and an active PFC-function for gentle and safe charging of your batteries. The powerful and efficient device also has a universal AC input and by free air convection, so no fan is needed. Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications.

This text is machine translated.
