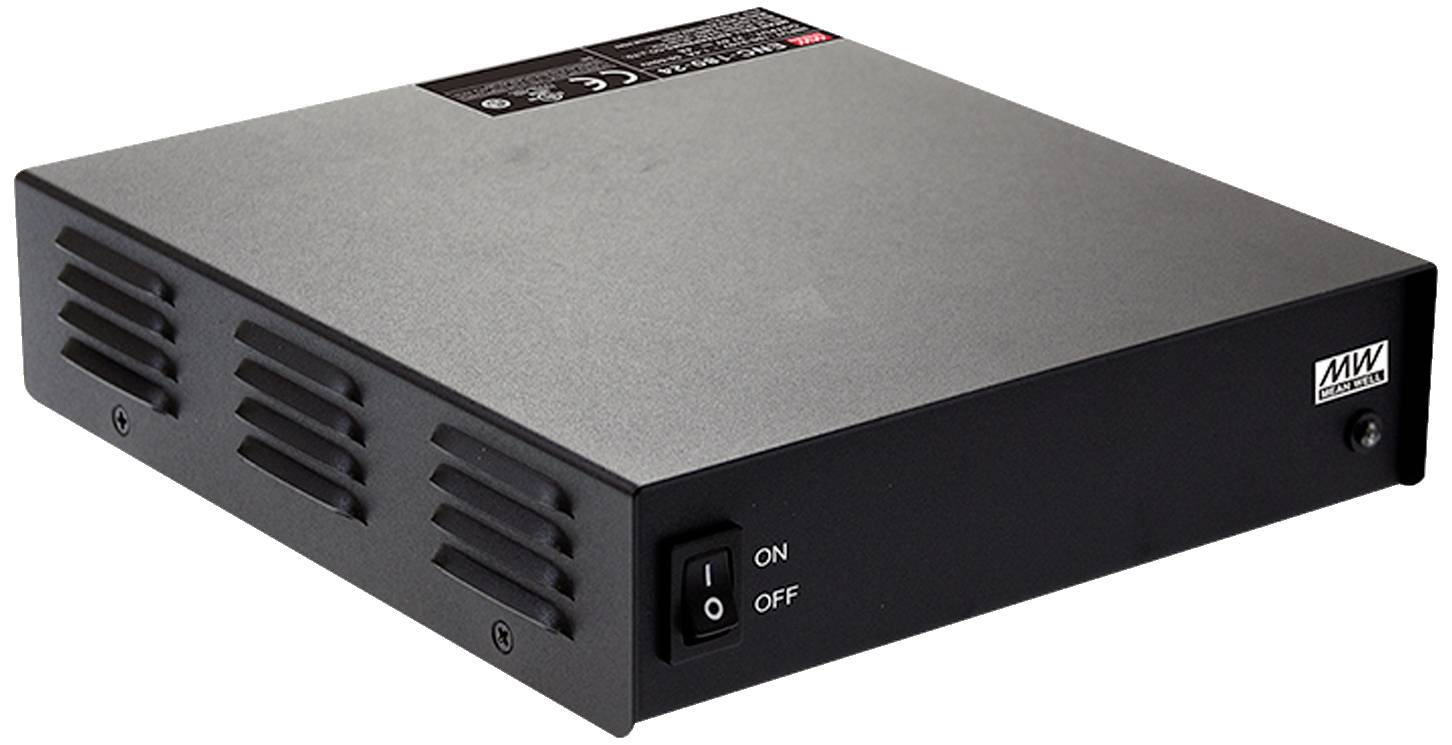

MEAN WELL VRLA charger ENC-360-48 48 V Charging current (max.) 6 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Lead-acid battery charger ENC-360-48
- 3-stage programmable charging curve
- Built-in active PFC-Function
- Universal AC input.
Technical specifications
- Output voltage 36 to 60 V.Output 345.6 WEnd-of-charge voltage 62.1 to 72.9 V.Temperature range of -30 to +70 °CEfficiency 94 %
- Product type
VRLA charger
- Charger features
PC interface
Trickle charging
Selectable charging current
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
Li-ion
LiFePO
- Suitable for lead-type rechargeables
48 V
- Recommended battery capacity (min.)
25 Ah
- Recommended battery capacity (max.)
65 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
6 A
- Charging current at 48 V
6 A
- Charge Voltage
programmierbar
- Width
178 mm
- Height
45.5 mm
- Depth
192 mm
- Weight
1.500 g
- Dim
(W x H x D) 178 x 45.5 x 192 mm
Documents & Downloads
Datasheet
Datasheet 2730139 MEAN WELL VRLA charger ENC-360-48 48 V Charging current (max.) 6 A
User & Safety Instructions
User & Safety Instructions 2730139 MEAN WELL VRLA charger ENC-360-48 48 V Charging current (max.) 6 A
Warranty Terms
Warranty Terms 2730139 MEAN WELL VRLA charger ENC-360-48 48 V Charging current (max.) 6 A
Description
Innovative charger for lead-acid, Li-ion, LiFePO 4 batteries.
The microprocessor controlled charger has a 3-stage programmable charging curve and an active PFC-function for gentle and safe charging of your batteries. The powerful and efficient device also has a universal AC input and by free air convection, so no fan is needed. Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications.
This text is machine translated.
The microprocessor controlled charger has a 3-stage programmable charging curve and an active PFC-function for gentle and safe charging of your batteries. The powerful and efficient device also has a universal AC input and by free air convection, so no fan is needed. Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications.
This text is machine translated.
Features
- 3-stage programmable charging curve
- Microprocessor-controlled
- Vboost and vfloat charging technology
- Universal AC input.
- Built-in active PFC-Function
- High degree of efficiency
- Fan-less design, cooling by free air convection
- Temperature compensation
- Circuit breaker
- Overload and overvoltage protection
- Temperature control
- Reverse polarity protection
- Wide-range input of 90 to 264 V
- On/off switch
- Frequency range 47 to 63 Hz
- LED display
- Fulfils the safety provisions UL, CUL, CB, CE, FCC
- Meets the standards UL 60950-1 and IEC 60950-1
- Robust housing with anti-slip feet
Scope of delivery
- Battery charger
- User manual.
