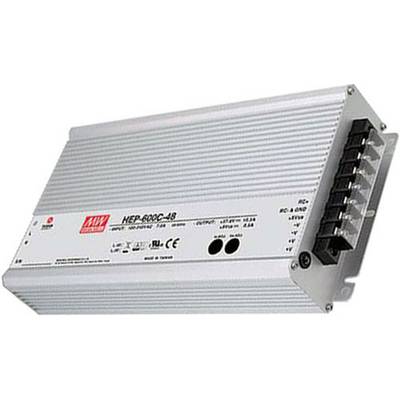

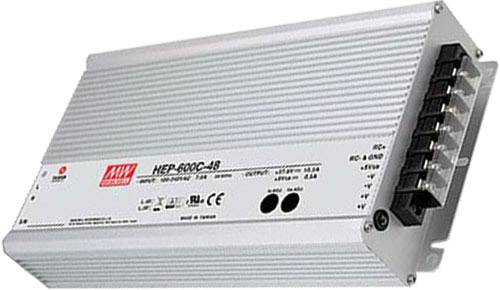

MEAN WELL VRLA charger HEP-600C-48 48 V Charging current (max.) 10.5 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Lead-acid battery charger HEP-600C-48
- Programmable 3-stage charging and charging curve
- Built-in PFC circuit
- Fan-less design, cooling by free convection
Technical specifications
- Output voltage 46.1, 65 V
- Power 600 W
- End-of-charge voltage 63, 75 V
- Temperature range -40 to +70 °C
- Degree of efficiency 95.5%
- Product type
VRLA charger
- Charger features
Trickle charging
Selectable charging current
Timer settings
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
Li-ion
- Suitable for lead-type rechargeables
48 V
- Recommended battery capacity (min.)
35 Ah
- Recommended battery capacity (max.)
105 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
10.5 A
- Charging current at 48 V
10.5 A
- Charge Voltage
57,6 V
- Width
144 mm
- Height
48.5 mm
- Depth
280 mm
- Weight
3900 g
- Dim
(W x H x D) 144 x 48.5 x 280 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2178614 MEAN WELL VRLA charger HEP-600C-48 48 V Charging current (max.) 10.5 A
User & Safety Instructions
User & Safety Instructions 2178614 MEAN WELL VRLA charger HEP-600C-48 48 V Charging current (max.) 10.5 A
Warranty Terms
Warranty Terms 2178614 MEAN WELL VRLA charger HEP-600C-48 48 V Charging current (max.) 10.5 A
Description
Innovative charging device with high power density and efficiency.
The microprocessor controlled charger has a programmable 3-stage charging and charging curve as well as an active PFC-function for gentle and safe charging of your batteries. For this purpose, you have the option to adjust the output current and voltage. The powerful and efficient device also has a universal AC input.
Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications. The charger also offers a high stability and a good cost-benefit ratio. Frequent application area is, for example, DC-UPS, emergency power supply, feedback systems, battery charger for boats, vehicle charging stations, waste water treatment systems, electrolysis system and many other applications.
This text is machine translated.
The microprocessor controlled charger has a programmable 3-stage charging and charging curve as well as an active PFC-function for gentle and safe charging of your batteries. For this purpose, you have the option to adjust the output current and voltage. The powerful and efficient device also has a universal AC input.
Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications. The charger also offers a high stability and a good cost-benefit ratio. Frequent application area is, for example, DC-UPS, emergency power supply, feedback systems, battery charger for boats, vehicle charging stations, waste water treatment systems, electrolysis system and many other applications.
This text is machine translated.
Features
- Programmable 3-stage charging and charging curve
- Microprocessor-controlled
- Vboost and vfloat charging technology
- Trickle charging
- Universal AC input.
- High power density
- Built-in active PFC-Function
- Potentiometers
- PMBus or CANBus for charging
- Built-in or-ing FET
- High degree of efficiency
- Fan-less design, cooling by free convection
- Temperature compensation
- Reverse current protection
- Circuit breaker
- Overload and overvoltage protection
- Temperature control
- Reverse polarity protection
- Wide-range input of 90 to 264 V
- Timer switch-off
- On/off switch
- Frequency range 47 to 63 Hz
- Three-colored LED charging indicator
- Fulfils the safety provisions UL, CUL, CE, TÜV
- Meets the standards UL/EN/IEC60950-1 and EN55022/55024
- Robust housing
Scope of delivery
- Battery charger
- User manual.
Hints
The low idle power by switching off via remote control.
