MEAN WELL VRLA charger NPB-120-12TB 12 V Charging current (max.) 6.8 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

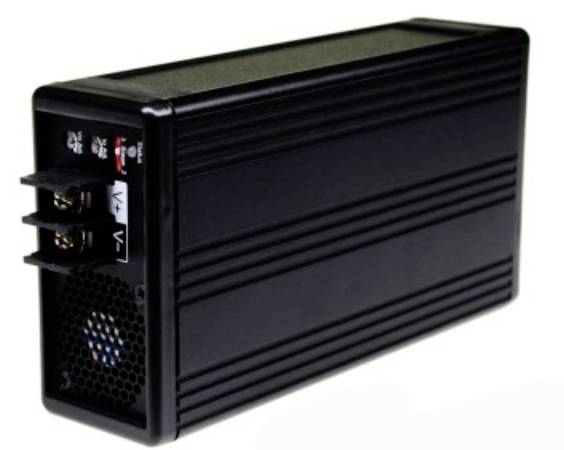

Lead-acid charger NPB-120-12TB
- 2 to 3-stage chargerAdjustable charging currentMetal housing
Technical specifications
- Output voltage 10.5 to 15.2 V.Power 103.4 WEnd-of-charge voltage 16 to 20 V.Temperature range of -30 to +70 °CEfficiency 86.5%
- Product type
VRLA charger
- Charger features
Selectable charging current
Battery temperature monitoring
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
Li-ion
- Suitable for lead-type rechargeables
12 V
- Recommended battery capacity (min.)
20 Ah
- Recommended battery capacity (max.)
90 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
6.8 A
- Charging current at 12 V
6.8 A
- Charge Voltage
13.8 V
- Length
180 mm
- Width
96 mm
- Height
49 mm
- Weight
1300 g
- Dim
(L x W x H) 180 x 96 x 49 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2730107 MEAN WELL VRLA charger NPB-120-12TB 12 V Charging current (max.) 6.8 A
User & Safety Instructions
User & Safety Instructions 2730107 MEAN WELL VRLA charger NPB-120-12TB 12 V Charging current (max.) 6.8 A
Warranty Terms
Warranty Terms 2730107 MEAN WELL VRLA charger NPB-120-12TB 12 V Charging current (max.) 6.8 A
Description
Highly reliable standard charger with a large voltage range. Uses a highly efficient circuit design that allows small size, high efficiency and flexibility. Suitable for electric bicycles, scooters, hand-held electric tools, mobile robots, unmanned vehicles, Charging different DC mobile devices and more.
This text is machine translated.
This text is machine translated.
Features
- 2 to 3-stage chargerMetal housing for better heat dissipation, WAS results in a lower contact temperatureCharging voltage can be set (10.5~15.2 V, 21~30.4 V, 42~60.8 V)Selectable charging current (50~100 % of the rated current)2 or 3 levels can be selected via DIP SWProtection against short circuit, over-voltage, over-temperature, battery polarity reversalConforms to the certifications UL/EN62368-1 and IEC60335-1/2-29
Scope of delivery
- Charger
- Charging cable
- User manual.
