Buy MEAN WELL VRLA charger NPB-360-12TB 12 V Charging current (max.) 20 A

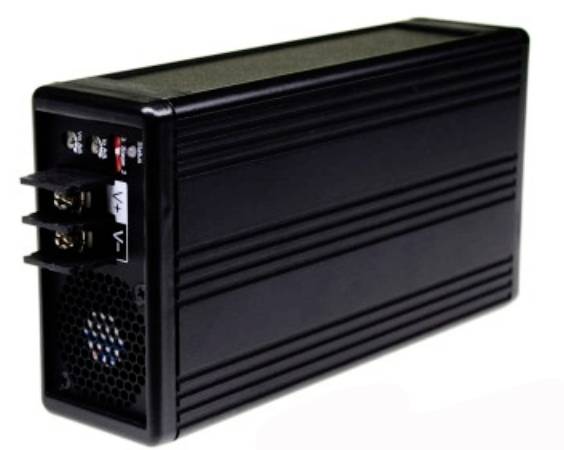

A black charger with ventilation grille and two connectors. Symbols and '±V +-V' labels are visible on the left.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Lead-acid charger NPB-360-12TB

2 to 3-stage chargerAdjustable charging currentMetal housing

Technical specifications

Output voltage 10.5 to 15.2 V.Power 304 WEnd-of-charge voltage 16 to 20 V.Temperature range of -30 to +70 °CEfficiency 87 %

Product type: VRLA charger

Charger features: Selectable charging current
Battery temperature monitoring

Matching rechargeable battery: SLA
Lead-acid
Lead acid membrane
Li-ion

Suitable for lead-type rechargeables: 12 V

Recommended battery capacity (min.): 65 Ah

Recommended battery capacity (max.): 195 Ah

Charging slots: 1

Operating voltage: 90 - 264 V

Charging current (max.): 20 A

Charging current at 12 V: 20 A

Charge Voltage: 13.8 V

Length: 182.7 mm

Width: 96 mm

Height: 49 mm

Weight: 1300 g

Dim: (L x W x H) 182.7 x 96 x 49 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2730116 MEAN WELL VRLA charger NPB-360-12TB 12 V Charging current (max.) 20 A

User & Safety Instructions

User & Safety Instructions 2730116 MEAN WELL VRLA charger NPB-360-12TB 12 V Charging current (max.) 20 A

Warranty Terms

Warranty Terms 2730116 MEAN WELL VRLA charger NPB-360-12TB 12 V Charging current (max.) 20 A

Description

Highly reliable standard charger with a large voltage range. Uses a highly efficient circuit design that allows small size, high efficiency and flexibility. Suitable for electric bicycles, scooters, hand-held electric tools, mobile robots, unmanned vehicles, Charging different DC mobile devices and more.

This text is machine translated.

Features

2 to 3-stage chargerMetal housing for better heat dissipation, WAS results in a lower contact temperatureCharging voltage can be set (10.5~15.2 V, 21~30.4 V, 42~60.8 V)Selectable charging current (50~100 % of the rated current)2 or 3 levels can be selected via DIP SWProtection against short circuit, over-voltage, over-temperature, battery polarity reversalConforms to the certifications UL/EN62368-1 and IEC60335-1/2-29
