MEAN WELL VRLA charger NPP-750-12 12 V Charging current (max.) 43 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

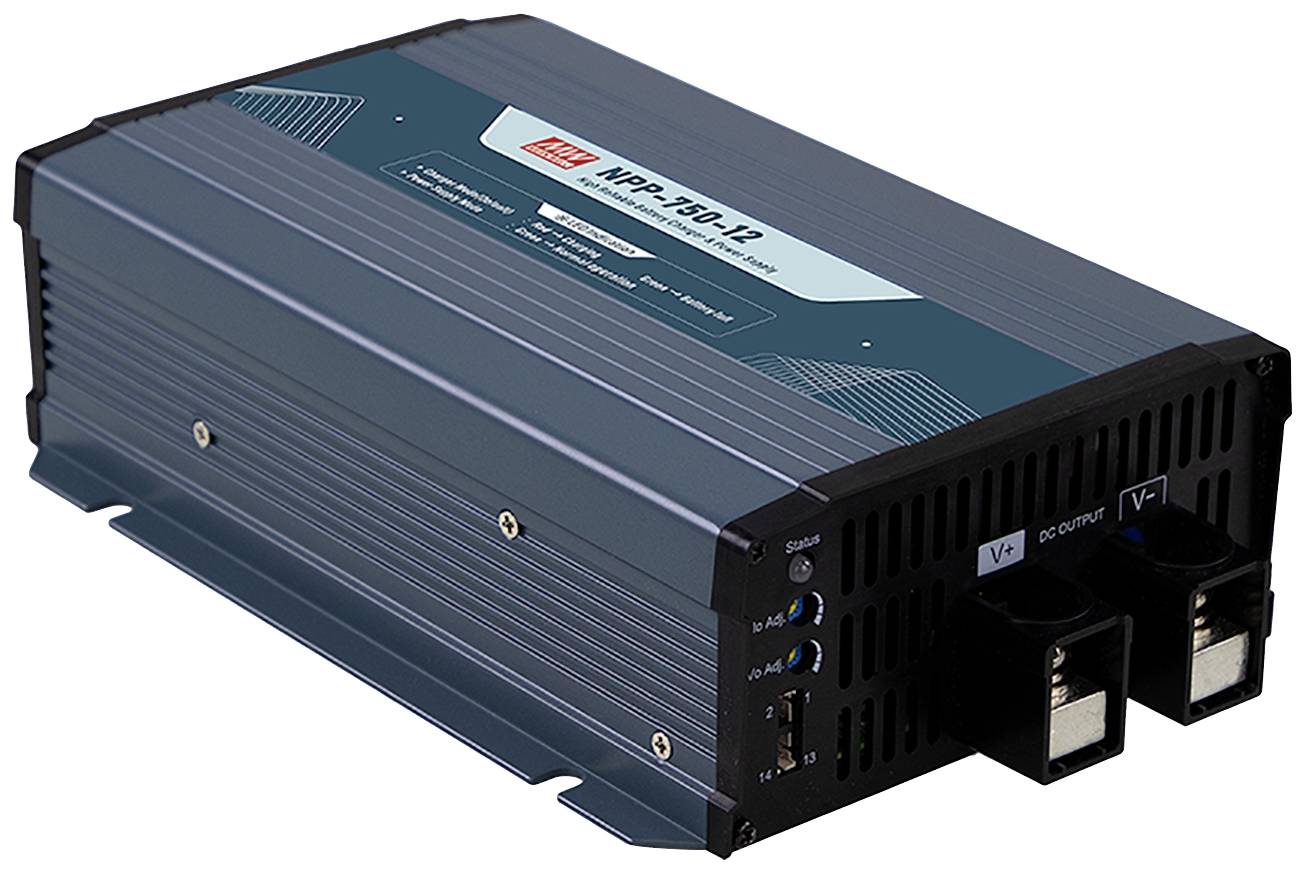

Lead-acid charger NPP-750-12
- It can be used as a power supply and as a battery chargerPotentiometer for setting the output voltage/output current3-stage charging curve
Technical specifications
- Output voltage 10.5 to 21 V.Power 722.4 WEnd-of-charge voltage 21.5 to 26 V.Temperature range of -30 to +70 °CEfficiency 92 %
- Product type
VRLA charger
- Charger features
Selectable charging current
Battery temperature monitoring
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
Li-ion
- Suitable for lead-type rechargeables
12 V
- Recommended battery capacity (min.)
150 Ah
- Recommended battery capacity (max.)
500 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
43 A
- Charging current at 12 V
43 A
- Charge Voltage
13.8 V
- Length
230 mm
- Width
158 mm
- Height
67 mm
- Weight
1840 g
- Dim
(L x W x H) 230 x 158 x 67 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2730136 MEAN WELL VRLA charger NPP-750-12 12 V Charging current (max.) 43 A
User & Safety Instructions
User & Safety Instructions 2730136 MEAN WELL VRLA charger NPP-750-12 12 V Charging current (max.) 43 A
Warranty Terms
Warranty Terms 2730136 MEAN WELL VRLA charger NPP-750-12 12 V Charging current (max.) 43 A
Description
Intelligent charger with 3-stage charging curve and remote signal for switching on/off. Can be used as a power supply and as a battery charger. Has a potentiometer for setting the output voltage/output current.
This text is machine translated.
This text is machine translated.
Features
- It can be used as a power supply and as a battery chargerPotentiometer for setting the output voltage/output current3-stage charging curveTemperature controlRemote signal for switching on/offOperating temperature from -30 to +70°C, minimizes environmental restrictionsProtection against short circuit, over-voltage, over-temperature, battery polarity reversalConforms to the certifications EN62368-1, EN60335-1/2-29, EN55022 class B as well as EN55014-1 class B
Scope of delivery
- Charger
- User manual.
Hints
Power cable, please order separately.
