Buy MEAN WELL VRLA charger NPP-750-24 24 V Charging current (max.) 22.5 A

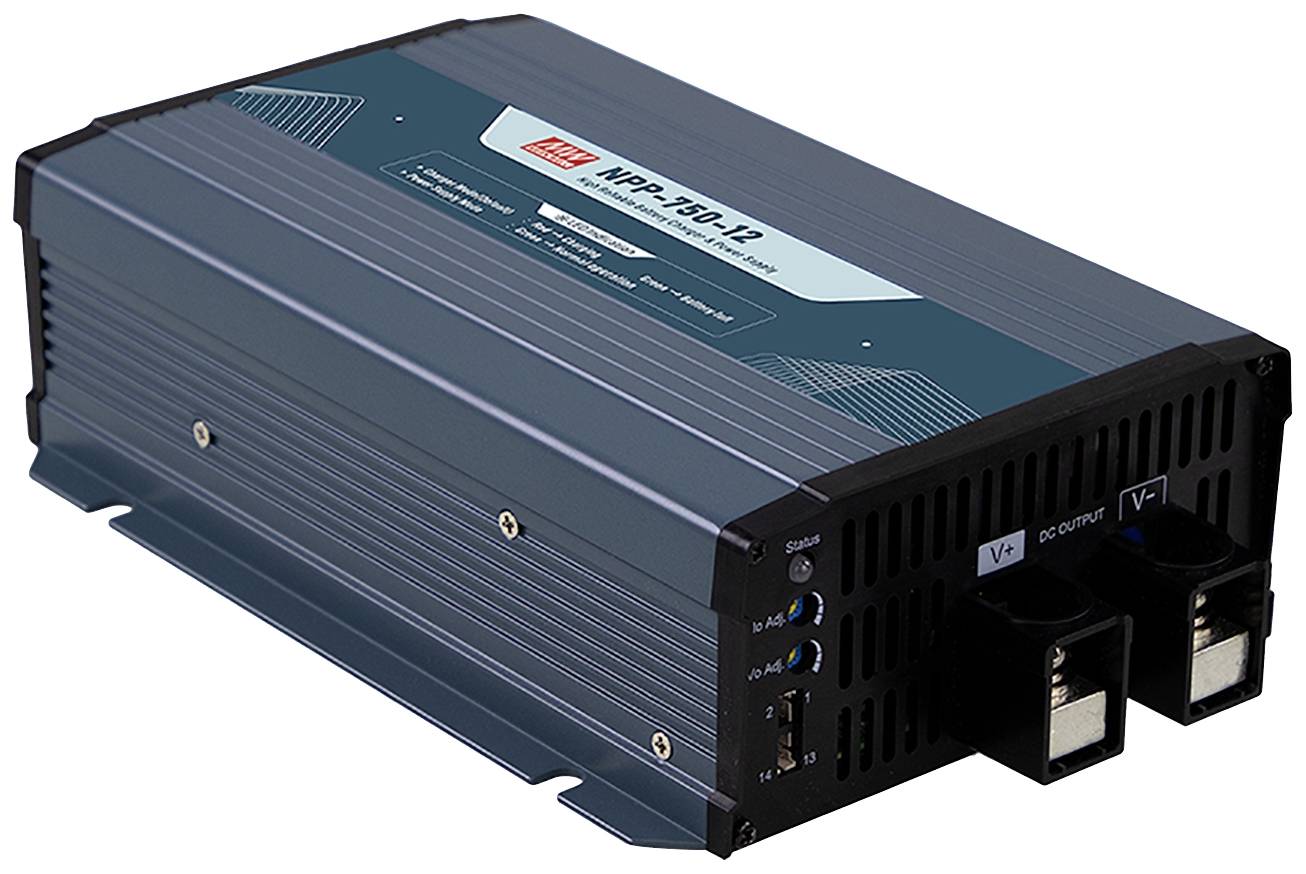

A power supply unit in a metal enclosure with ventilation slots and connectors. It is designed for power supply and voltage conversion.

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Lead-acid charger NPP-750-24

It can be used as a power supply and as a battery chargerPotentiometer for setting the output voltage/output current3-stage charging curve

Technical specifications

Output voltage 21 to 42 V.Power 756 WEnd-of-charge voltage 43 to 52 V.Temperature range of -30 to +70 °CEfficiency 93 %

Product type: VRLA charger

Charger features: Selectable charging current
Battery temperature monitoring

Matching rechargeable battery: SLA
Lead-acid
Lead acid membrane
Li-ion

Suitable for lead-type rechargeables: 24 V

Recommended battery capacity (min.): 80 Ah

Recommended battery capacity (max.): 260 Ah

Charging slots: 1

Operating voltage: 90 - 264 V

Charging current (max.): 22.5 A

Charging current at 24 V: 22.5 A

Charge Voltage: 27.6 V

Length: 230 mm

Width: 158 mm

Height: 67 mm

Weight: 1840 g

Dim: (L x W x H) 230 x 158 x 67 mm

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2730137 MEAN WELL VRLA charger NPP-750-24 24 V Charging current (max.) 22.5 A

User & Safety Instructions

User & Safety Instructions 2730137 MEAN WELL VRLA charger NPP-750-24 24 V Charging current (max.) 22.5 A

Warranty Terms

Warranty Terms 2730137 MEAN WELL VRLA charger NPP-750-24 24 V Charging current (max.) 22.5 A

Description

Intelligent charger with 3-stage charging curve and remote signal for switching on/off. Can be used as a power supply and as a battery charger. Has a potentiometer for setting the output voltage/output current.

This text is machine translated.

Features

It can be used as a power supply and as a battery chargerPotentiometer for setting the output voltage/output current3-stage charging curveTemperature controlRemote signal for switching on/offOperating temperature from -30 to +70°C, minimizes environmental restrictionsProtection against short circuit, over-voltage, over-temperature, battery polarity reversalConforms to the certifications EN62368-1, EN60335-1/2-29, EN55022 class B as well as EN55014-1 class B
