MEAN WELL VRLA charger RCB-1600-24 24 V Charging current (max.) 55 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

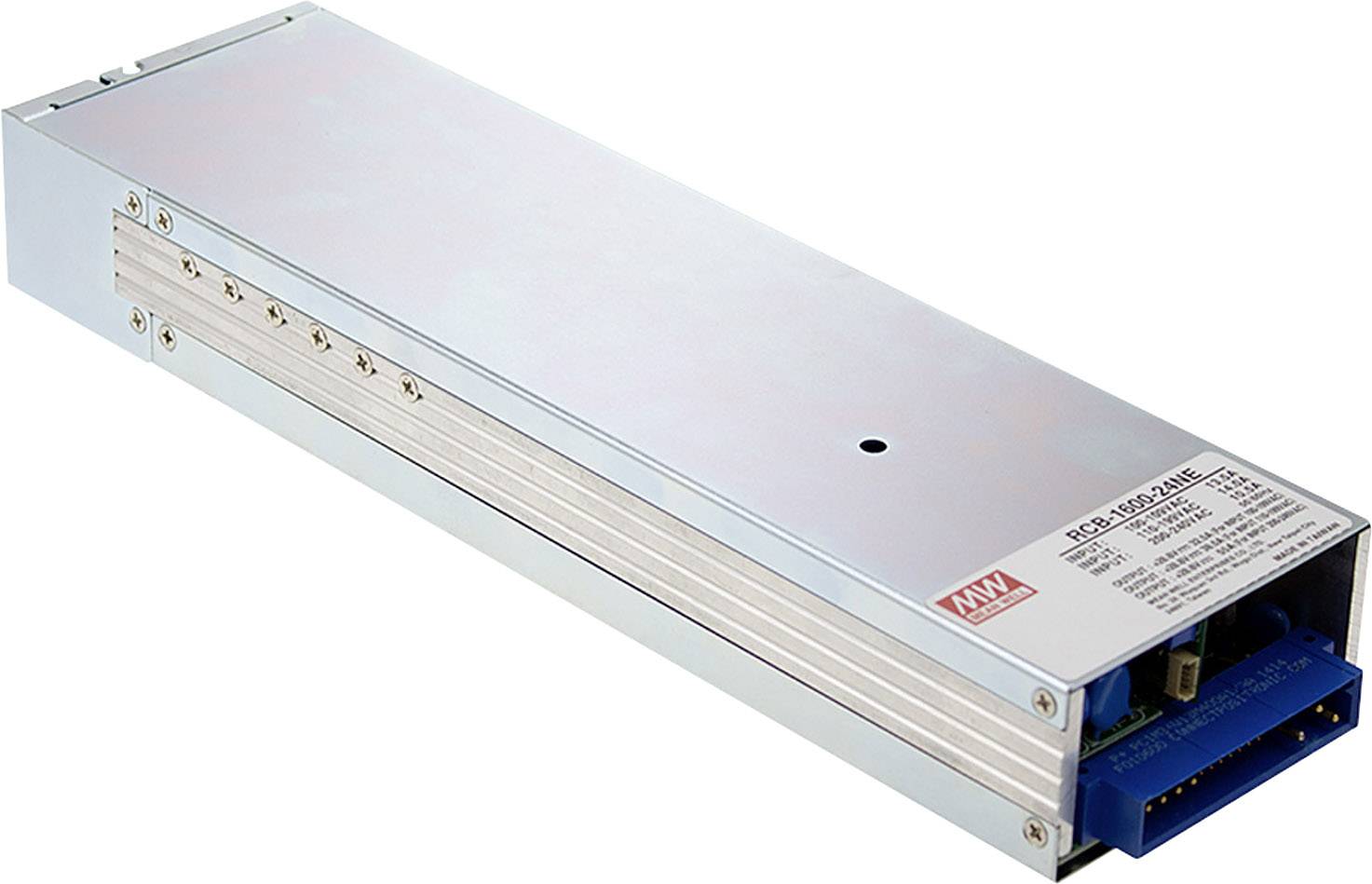

Lead-acid battery charger RCB-1600-24
- Programmable 3-stage charging and charging curve
- Suitable for rack mounting
- Output current and voltage can be programd
Technical specifications
- Connection compact power-connector: Postronic PCIM 34W 13F 400 A1
- Output voltage 23.5, 30 V
- Power 1584 W
- End-of-charge voltage 31.5, 37.5 V
- Temperature range: -30 to +70 °C
- Efficiency 92 %
- Product type
VRLA charger
- Charger features
Trickle charging
Selectable charging current
PC interface
Timer settings
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
Li-ion
- Suitable for lead-type rechargeables
24 V
- Recommended battery capacity (min.)
180 Ah
- Recommended battery capacity (max.)
550 Ah
- Charging slots
1
- Operating voltage
90 - 264 V
- Charging current (max.)
55 A
- Charging current at 24 V
55 A
- Charge Voltage
programmierbar
- Width
85 mm
- Height
41 mm
- Depth
300 mm
- Weight
1870 g
- Dim
(W x H x D) 85 x 41 x 300 mm
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1761291 MEAN WELL VRLA charger RCB-1600-24 24 V Charging current (max.) 55 A
User & Safety Instructions
User & Safety Instructions 1761291 MEAN WELL VRLA charger RCB-1600-24 24 V Charging current (max.) 55 A
Warranty Terms
Warranty Terms 1761291 MEAN WELL VRLA charger RCB-1600-24 24 V Charging current (max.) 55 A
Description
Innovative charging device with high power density and efficiency.
The microprocessor controlled charger has a programmable 3-stage charging and charging curve as well as an active PFC-function for gentle and safe charging of your batteries. Via the PM-Bus-interface can be, for example, the charging curve of the battery charger is exactly on the used battery. For this purpose, you have the option to adjust the output current and voltage. The powerful and efficient device also has a universal AC input and I2C interface. In addition, the charger in a rack system integration and can also be adjusted perfectly to the charging, Backup or constant power.
Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications. The charger also offers a high stability and a good cost-benefit ratio. Frequent application area is, for example, DC-UPS, emergency power supply, feedback systems, battery charger for boats, vehicle charging stations, waste water treatment systems, electrolysis system and many other applications.
This text is machine translated.
The microprocessor controlled charger has a programmable 3-stage charging and charging curve as well as an active PFC-function for gentle and safe charging of your batteries. Via the PM-Bus-interface can be, for example, the charging curve of the battery charger is exactly on the used battery. For this purpose, you have the option to adjust the output current and voltage. The powerful and efficient device also has a universal AC input and I2C interface. In addition, the charger in a rack system integration and can also be adjusted perfectly to the charging, Backup or constant power.
Numerous safety mechanisms and a wide-range input as well as a higher temperature range allow for a variety of applications. The charger also offers a high stability and a good cost-benefit ratio. Frequent application area is, for example, DC-UPS, emergency power supply, feedback systems, battery charger for boats, vehicle charging stations, waste water treatment systems, electrolysis system and many other applications.
This text is machine translated.
Features
- Programmable 3-stage charging and charging curve
- Microprocessor controlled
- Output current and voltage programmable
- Vboost and Vfloat charging technology
- Maintenance charging
- Universal AC input
- Suitable for rack mounting
- High power density
- Built-in active PFC function
- Integrated I2C interface
- PMBus protocol
- Potentiometer
- PMBus or CANBus for charging
- Built-in OR-ing FET
- High efficiency
- Very quiet, thermostatically controlled fan
- Temperature compensation
- Reverse current protection
- Short-circuit-proof
- Overload and surge protection
- Temperature control
- Polarity reversal protection
- Wide-range input 90 to 264 V
- Timer switch-off
- On/off switch
- Frequency range 47 to 63 Hz
- Three-color LED charging indicator
- Meets safety requirements of UL, CUL, CE
- Meets the standards UL/EN/IEC 60950-1 and EN 55022 / 55024
- Robust housing
Scope of delivery
- Battery charger
- User manual.
