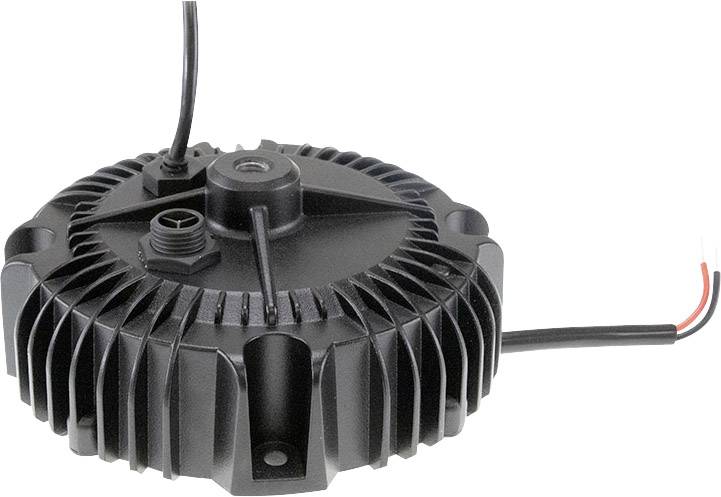

MEAN WELL XBG-160-A LED driver Constant power 159.9 W 1425 - 4100 mA 34 - 56 V DC Outdoor, not dimmable, Surge protectio
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Only 3 Piece(s) available
Highlights & Details
XBG-160-A
- Constant power
- 34 - 56 V DC
- 1425 - 4100 mA
Technical specifications
- Product type
LED driver
- Type
Constant power
- Dim
(L x W x H) 151.5 x 151.5 x 60 mm
- Factory colour
Black (anodised)
- Output voltage (max.)
56 V DC
- Output voltage (min.)
34 V DC
- Test mark
CB,SELV, UL, ENEC
- Max. output current
4100 mA
- Output current (max.) - rounded
4.1 A
- Operating voltage
230 V AC
115 V AC
- LED driver features
Outdoor
not dimmable
Surge protection
Overvoltage
PFC circuit
adjustable
IP67
- Connection
Open end cable
- Max. power
159.9 W
- No. of outputs
1 x
- Output current (min.)
1425 mA
- Input voltage (max.)
305 V AC
- Min. input voltage
90 V AC
- Weight
1250 g
- Power range
159.9 W (max)
- Type
Pulsed
- Width
151.5 mm
- Height
60 mm
- Length
151.5 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2143297 MEAN WELL XBG-160-A LED driver Constant power 159.9 W 1425 - 4100 mA 34 - 56 V DC Outdoor, not dimmable, Surge protectio
User & Safety Instructions
User & Safety Instructions 2143297 MEAN WELL XBG-160-A LED driver Constant power 159.9 W 1425 - 4100 mA 34 - 56 V DC Outdoor, not dimmable, Surge protectio
Warranty Terms
Warranty Terms 2143297 MEAN WELL XBG-160-A LED driver Constant power 159.9 W 1425 - 4100 mA 34 - 56 V DC Outdoor, not dimmable, Surge protectio
Description
Features
- Power via internal potentiometer can be set
- Constant power
- Independent operating device

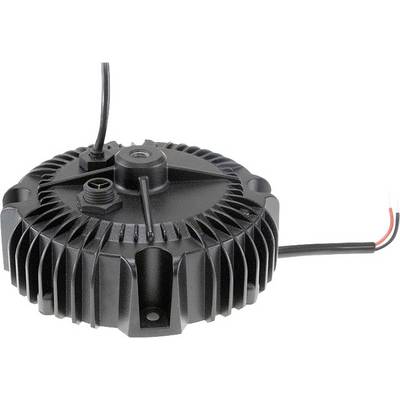

- Round shape, shed metal housing, IP67
- Wide-range input
- Overload protection through current limitation, auto recovery
- Protected against short circuit, overload, overvoltage, overheating
- Built-in PFC circuit
- SELV compliant
- Safety Standards: EN 61347-1, EN 61347-2-13 and other
- Emc Standards: EN55015, EN61000-3-2 Class C, EN 61000-3-3 and other
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
