MEAN WELL XLC-25-H-B LED driver Constant current 25.0 W 0.3 - 1.1 A 9 - 54 V adjustable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

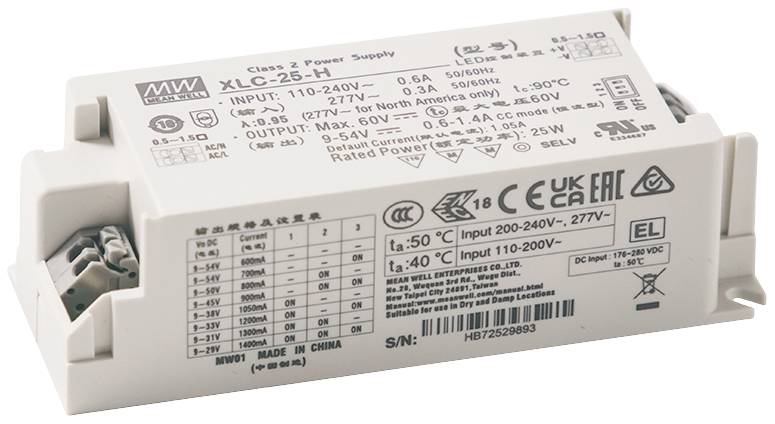

Mean Well XLC-25 LED-SNT plastic case
- Constant current
- 9 - 54 V
- 0.3 - 1.1 A
Technical specifications
- XLC-25 series
- Application: Lighting
- Dimensions: Length 107 mm
- Dimensions: Width 40 mm
- Dimensions: Height 32 mm
- Weight: 158 g.
- Identification: MM characters; SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 100 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 141 V.
- Max. Input voltage DC 431 V.
- Input current 0.15 A
- Efficiency 88 %
- Leakage current, max. 0.75 mA
- Inrush current, max. 10 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connector type, input: Plug-in terminal
- Number of outputs 1
- Power output: 25 W
- Overload protection 0
- Short circuit protection 1
- Overvoltage protection 0
- Overtemperature protection 1
- Connector type, output: Plug-in terminal
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- CE, EN, IEC, EAC, UKCA, CCC,ENEC,RCM
- Standards (EMC) EN 55015
- Standards (security): EN 61347-2-13, IEC 61347-1, IEC 61347-2-13, EN 61347-1
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- RoHS R - RoHS compliant
- Operating mode CP
- Dimmable:1
- Interfaces: 0-10 Volt, PWM, resistive
- Power consumption in standby mode (PSB), less than: 0.5 W.
- Number of max. B16 circuit breaker: 85
- Number of max. at C16 Circuit breaker: 85
- Output voltage min.: 9 V
- Output voltage max. 54 V
- Output current selectable: 1
- Selectable output currents (A): 0.3; 0.35; 0.4; 0.5; 0.6; 0.7; 0.9: 1.5
- Output current min. 0.3 A
- Output current max. 1.05 A
- Output current tolerance -5 - 5 %
- Remaining current ripple 4%
- Product type
LED driver
- Type
Constant current
- Dim
(L x W x H) 107.0 x 40.0 x 32.0 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
- Test mark
MM-Zeichen; SELV. CE.EN.IEC.EAC.UKCA.CCC.ENEC.RCM
- Max. output current
1.1 A
- Output current (max.) - rounded
1.1 A
- Protection class
II
- LED driver features
adjustable
- Connection
Plug & Clip
- Max. power
25.0 W
- No. of outputs
1 x
- Output current (min.)
0.3 A
- Input voltage (max.)
305 V
- Min. input voltage
100 V
- Weight
158.0 g
- Power range
25.0 W (max)
- Width
40.0 mm
- Height
32.0 mm
- Length
107.0 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- I/O voltage high
54 V
- Input voltage
431 V
