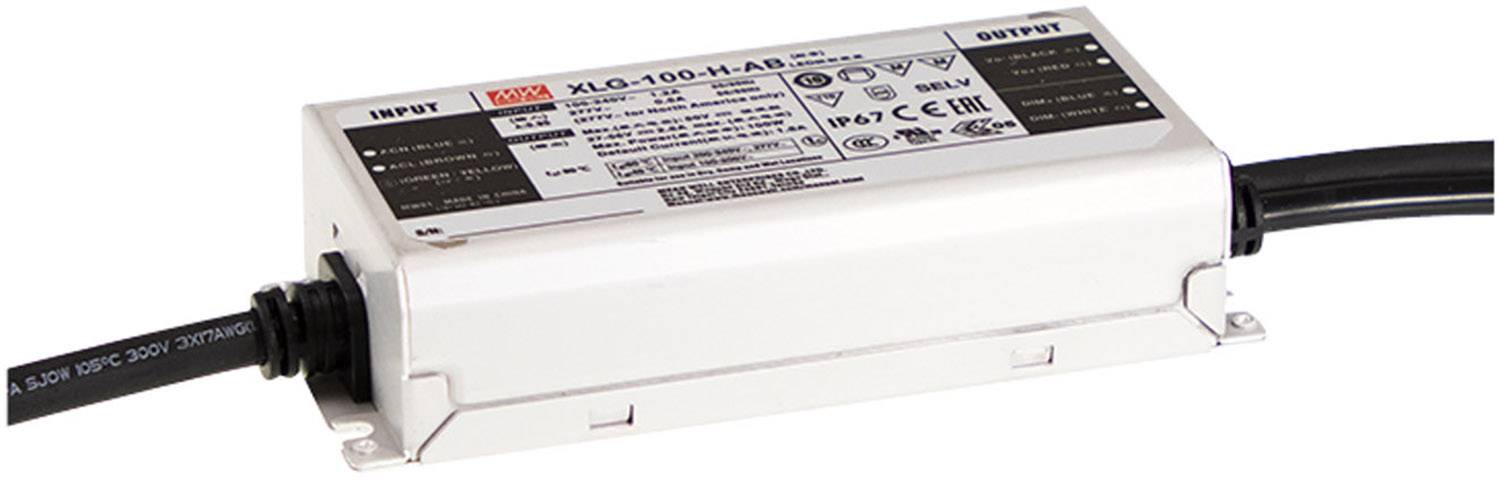

MEAN WELL XLG-100-L-AB LED driver Constant power 100 W 350 - 1050 mA 71 - 142 V DC 3-in-1 dimmer, Approved for use on fu
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Only 10 Piece(s) available
Highlights & Details
XLG-100-L-AB
- Constant power
- 71 - 142 V DC
- 350 - 1050 mA
Technical specifications
- Product type
LED driver
- Type
Constant power
- Dim
(L x W x H) 140 x 63 x 32 mm
- Factory colour
Metal
- Output voltage (max.)
142 V DC
- Output voltage (min.)
71 V DC
- Test mark
CB, MM, ENEC, UL
- Max. output current
1050 mA
- Output current (max.) - rounded
1.05 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
3-in-1 dimmer
Approved for use on furniture
Outdoor
PFC circuit
Surge protection
Overvoltage
adjustable
dimmable
Suitable for flammable surfaces
IP67
- Connection
Open end cable
- Max. power
100 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
350 mA
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
580 g
- Power range
100 W (max)
- Type
Pulsed
- Width
63 mm
- Height
32 mm
- Length
140 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Documents & Downloads
Datasheet
Datasheet 2143288 MEAN WELL XLG-100-L-AB LED driver Constant power 100 W 350 - 1050 mA 71 - 142 V DC 3-in-1 dimmer, Approved for use on fu
User & Safety Instructions
User & Safety Instructions 2143288 MEAN WELL XLG-100-L-AB LED driver Constant power 100 W 350 - 1050 mA 71 - 142 V DC 3-in-1 dimmer, Approved for use on fu
Warranty Terms
Warranty Terms 2143288 MEAN WELL XLG-100-L-AB LED driver Constant power 100 W 350 - 1050 mA 71 - 142 V DC 3-in-1 dimmer, Approved for use on fu
Description
Conrad has the extended XLG-series of LED switching power supply of mean well into its product program, which are based on a design with constant power and constant voltage. The power supply are new versions with 100 W. in addition to the L/H version for constant current or constant power applications there are also a 12 V and 24 V version for constant voltage applications. These models are suitable for use in indoor and outdoor lighting projects including waterproof Light strips and advertising light box. The Execution Type L is designed for a full load operation from 700 to 1050 mA. Type H for the full power operation is based on a 56V output and offers different driver currents for various performance recordings. This type is suitable for COB LEDs with forward voltage of less than 56 V, as well as SMD LEDs, especially for lights, which require a compliance with the SELV small 60V. All models of the XLG series reach a high surge protection of up to a maximum of 10 kV (LN-PE)/6 kV (L-N), EN61547 and EN61000-4-5 compliant and suitable for any kind of outdoor lighting. Your input overvoltage protection (IOVP) is specially designed for unstable ac power sources and reduces the failure rate of the lights again. Also has a 3-in-1 dimmer function with insulation design, the series.
This text is machine translated.
This text is machine translated.
Features
- IP67
- Current limit adjustable via internal potentiometer, 3 in 1 dimming function (0...10 V DC, 10 V PWM, potentiometer
- Independent operating device
- Universal input 100...305 V AC
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, over-current, over-voltage, over-temperature
- Built-in PFC circuit
- Low idle power less than 0.5W
- For LED lighting applications
- Surge immunity level 6 kV
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
