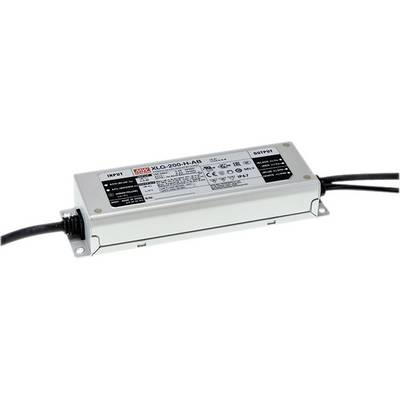

MEAN WELL XLG-200-24-A LED driver Constant voltage, Constant current 199.2 W 4.15 - 8.3 A 24 V DC Approved for use on fu
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 35.29 / piece)
€ 35.29
plus VAT.
14-day return policy included
Highlights & Details
XLG-200-24-A
- Constant voltage, Constant current
- 24 V DC
- 4.15 - 8.3 A
Technical specifications
- Mixed-mode output (voltage-stabilised/CV or current stabilised/CC)
- Depending on the connected LED light bulbs (constant current or constant voltage) fits the
- DC-output of the LED power supply unit, in the framework of the specified technical parameters of the data sheet of the load.
- Product type
LED driver
- Type
Constant voltage
Constant current
- Dim
(L x W x H) 199 x 63 x 35.5 mm
- Factory colour
Metal
- Output voltage (max.)
24 V DC
- Test mark
CB, MM, ENEC, UL
- Max. output current
8.3 A
- Output current (max.) - rounded
8.3 A
- Operating voltage
230 V AC
115 V AC
- Protection class
I
- LED driver features
Approved for use on furniture
Outdoor
PFC circuit
adjustable
Surge protection
Overvoltage
Suitable for flammable surfaces
IP67
- Connection
Open end cable
- Max. power
199.2 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
4.15 A
- Input voltage (max.)
305 V AC
431 V DC
- Min. input voltage
100 V AC
142 V DC
- Weight
850 g
- Power range
199.2 W (max)
- Type
Pulsed
- Width
63 mm
- Height
35.5 mm
- Length
199 mm
- Max. temperature
+90 °C
- Min. temperature
-40 °C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 2143294 MEAN WELL XLG-200-24-A LED driver Constant voltage, Constant current 199.2 W 4.15 - 8.3 A 24 V DC Approved for use on fu
User & Safety Instructions
User & Safety Instructions 2143294 MEAN WELL XLG-200-24-A LED driver Constant voltage, Constant current 199.2 W 4.15 - 8.3 A 24 V DC Approved for use on fu
Warranty Terms
Warranty Terms 2143294 MEAN WELL XLG-200-24-A LED driver Constant voltage, Constant current 199.2 W 4.15 - 8.3 A 24 V DC Approved for use on fu
Description
Conrad has the extended XLG-series of LED switching power supply of mean well into its product program, which are based on a design with constant power and constant voltage. The power supply are new versions with 200 W. in addition to the L/M/H-Version for constant current or constant power applications there are also a 12 V and 24 V version for constant voltage applications. These models are suitable for use in indoor and outdoor lighting projects including waterproof Light strips and advertising light box. The Execution Type L is designed for a full load operation from 700 to 1050 mA, the constant current of the type M models can be from 1400 to 2100 mA. Type H for the full power operation is based on a 56V output and offers different driver currents for various performance recordings. This type is suitable for COB LEDs with forward voltage of less than 56 V, as well as SMD LEDs, especially for lights, which require a compliance with the SELV small 60V. All models of the XLG series reach a high surge protection of up to a maximum of 10 kV (LN-PE)/6 kV (L-N), EN61547 and EN61000-4-5 compliant and suitable for any kind of outdoor lighting. Your input overvoltage protection (IOVP) is specially designed for unstable ac power sources and reduces the failure rate of the lights again. Also has a 3-in-1 dimmer function with insulation design, the series.
This text is machine translated.
This text is machine translated.
Features
- IP67
- Current limit adjustable via internal potentiometer
- Independent operating device
- Universal input 100...305 V AC
- Metal housing
- Overload protection through current limitation, auto recovery
- Protected against short-circuit, over-current, over-voltage, over-temperature
- Built-in PFC circuit
- Low idle power less than 0.5W
- For LED lighting applications
- Surge immunity level 6 kV
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
