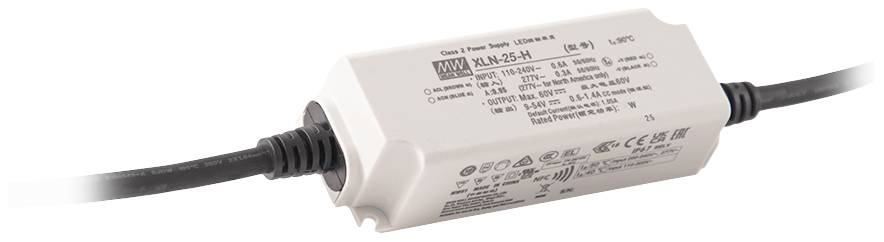

MEAN WELL XLN-25-24 LED driver Constant voltage 25.2 W 1.05 A 24 V Surge protection 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
14-day return policy included
Highlights & Details
Mean Well XLN-25 LED-SNT IP67 plastic approx.
- Constant voltage
- 24 V
- 1.05 A
Technical specifications
- XLN-25 series
- Application: Lighting
- Dimensions: Length 114 mm
- Dimensions: Width 44 mm
- Dimensions: Height 32 mm
- Weight: 12.5 g
- Identification: MM characters; SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 100 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 141 V.
- Max. Input voltage DC 431 V.
- Input current 0.15 A
- Efficiency 86 %
- Idle power, less than 0.5 W
- Leakage current, max. 0.75 mA
- Inrush current, max. 10 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connection type, input: Stranded wire
- Number of outputs 1
- Power output: 25.2 W
- Output voltage 24 V
- Output voltage tolerance -4 - 4 %
- Remaining ripple 60 MVP-p
- Output current: 1.05 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 1
- Connection type, output: Stranded wire
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- APPROVALS CE, IEC, EAC, CCC,ENEC,UKCA,UL
- Standards (EMC) EN 55015
- Standards (security): EN 61347-1, EN 61347-2-13, IEC 61347-1, IEC 61347-2-13
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Length of feed line, output 15 cm
- Protection class/IP IP67
- RoHS R - RoHS compliant
- Operating mode CV
- Dimmable:0
- Interfaces: Cannot be dimmed
- Number of max. B16 circuit breaker: 85
- Number of max. at C16 Circuit breaker: 85
- Output current selectable: 0
- Product type
LED driver
- Type
Constant voltage
- Operating current
0.15 A
- Dim
(L x W x H) 114.0 x 44.0 x 32.0 mm
- Output voltage (max.)
24 V
- Test mark
CE.IEC.EAC.CCC.ENEC.UKCA.UL
- Max. output current
1.05 A
- Output current (max.) - rounded
1.05 A
- Protection class
II
- LED driver features
Surge protection
IP67
- Connection
Braid
- Max. power
25.2 W
- No. of outputs
1 x
- Input voltage (max.)
305 V
- Min. input voltage
100 V
- Weight
12.5 g
- Power range
25.2 W (max)
- Width
44.0 mm
- Height
32.0 mm
- Length
114.0 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- Input voltage
431 V
Documents & Downloads
Datasheet
Datasheet 3164362 MEAN WELL XLN-25-24 LED driver Constant voltage 25.2 W 1.05 A 24 V Surge protection 1 pc(s)
Datasheet 3164362 MEAN WELL XLN-25-24 LED driver Constant voltage 25.2 W 1.05 A 24 V Surge protection 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164362 MEAN WELL XLN-25-24 LED driver Constant voltage 25.2 W 1.05 A 24 V Surge protection 1 pc(s)
Warranty Terms
Warranty Terms 3164362 MEAN WELL XLN-25-24 LED driver Constant voltage 25.2 W 1.05 A 24 V Surge protection 1 pc(s)
Description
DC-enabled, flicker-free, emergency light control device, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
