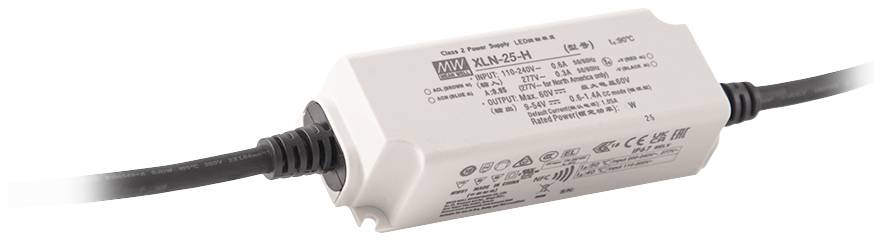

MEAN WELL XLN-25-H-DA2 LED driver Constant power 25.0 W 0.3 - 1.1 A 9 - 54 V DALI, Outdoor, PFC circuit, adjustable, dim
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
XLN-25-H-DA2
- Constant power
- 9 - 54 V
- 0.3 - 1.1 A
Technical specifications
- XLN-25 series
- Application: Lighting
- Dimensions: Length 114 mm
- Dimensions: Width 44 mm
- Dimensions: Height 32 mm
- Weight: 12.5 g
- Identification: MM-characters;SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 100 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 141 V.
- Max. Input voltage DC 431 V.
- Input current 0.15 A
- Efficiency 88 %
- Leakage current, max. 0.75 mA
- Inrush current, max. 10 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connection type, input: Stranded wire
- Number of outputs 1
- Power output: 25 W
- Overload protection 0
- Short circuit protection 1
- Overvoltage protection 0
- Overtemperature protection 1
- Connection type, output: Stranded wire
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- APPROVALS CE, IEC, EAC, CCC,ENEC,UKCA,UL
- Standards (EMC) EN 55015
- Standards (security): EN 61347-1, EN 61347-2-13, IEC 61347-1, IEC 61347-2-13
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Length of feed line, output 15 cm
- Protection class/IP IP67
- RoHS R - RoHS compliant
- Operating mode CP
- Dimmable:1
- Dali-2, push-DIMM interfaces
- Power consumption in networked standby mode (pnet), less than: 0.5 W.
- Number of max. B16 circuit breaker: 85
- Number of max. at C16 Circuit breaker: 85
- Output voltage min.: 9 V
- Output voltage max. 54 V
- Output current selectable: 1
- Selectable output currents (A): 0.3, 0.35, 0.4, 0.5, 0.6, 0.7, 0.9 and 1.5A
- Output current min. 0.3 A
- Output current max. 1.05 A
- Output current tolerance -5 - 5 %
- Remaining current ripple 4%
- Product type
LED driver
- Type
Constant power
- Dim
(L x W x H) 114.0 x 44.0 x 32.0 mm
- Output voltage (max.)
54 V
- Output voltage (min.)
9 V
- Test mark
MM-Zeichen. SELV. CE. IEC. EAC. CCC. ENEC. UKCA. UL
- Max. output current
1.1 A
- Output current (max.) - rounded
1.1 A
- Protection class
II
- LED driver features
DALI
Outdoor
PFC circuit
adjustable
dimmable
IP67
- Connection
Braid
- Max. power
25.0 W
- No. of outputs
1 x
- Output current (min.)
0.3 A
- Input voltage (max.)
305 V
- Min. input voltage
100 V
- Weight
12.5 g
- Power range
25.0 W (max)
- Width
44.0 mm
- Height
32.0 mm
- Length
114.0 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- I/O voltage high
54 V
- Input voltage
431 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164365 MEAN WELL XLN-25-H-DA2 LED driver Constant power 25.0 W 0.3 - 1.1 A 9 - 54 V DALI, Outdoor, PFC circuit, adjustable, dim
Datasheet 3164365 MEAN WELL XLN-25-H-DA2 LED driver Constant power 25.0 W 0.3 - 1.1 A 9 - 54 V DALI, Outdoor, PFC circuit, adjustable, dim
User & Safety Instructions
User & Safety Instructions 3164365 MEAN WELL XLN-25-H-DA2 LED driver Constant power 25.0 W 0.3 - 1.1 A 9 - 54 V DALI, Outdoor, PFC circuit, adjustable, dim
Warranty Terms
Warranty Terms 3164365 MEAN WELL XLN-25-H-DA2 LED driver Constant power 25.0 W 0.3 - 1.1 A 9 - 54 V DALI, Outdoor, PFC circuit, adjustable, dim
Description
DC-enabled, flicker-free, emergency light operating device, independent operating device, NFC function, output current selectable
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
