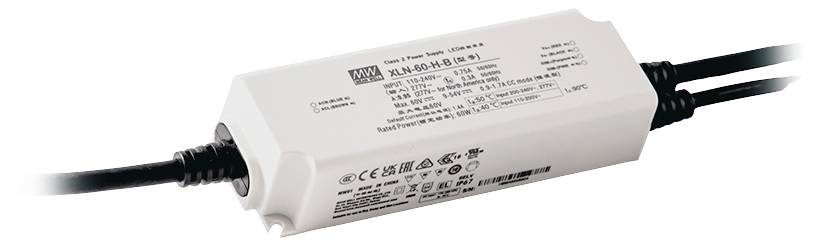

MEAN WELL XLN-60-24-B LED driver Constant voltage 60.0 W 2.5 A 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well XLN-60 LED-SNT IP67 plastic approx.
- Constant voltage
- 24 V
- 2.5 A
Technical specifications
- XLN-60 series
- Application: Lighting
- Dimensions: Length 141.5 mm
- Dimensions: Width 49 mm
- Dimensions: Height 32 mm
- Weight: 524 g
- Identification: MM-characters;SELV
- Min. Operating temperature -25 °C
- Max. operating temperature: 90 °C
- Storage temperature, min.: -40 °C.
- Storage temperature, max. 80 °C
- Min. Network frequency: 47 Hz
- Network frequency max. 63 Hz
- Min. Input voltage AC 110 V
- Max. Input voltage AC 305 V
- Min. Input voltage DC 155 V.
- Max. Input voltage DC 431 V.
- Input current 0.35 A
- Efficiency 87 %
- Leakage current, max. 0.75 mA
- Inrush current, max. 15 A
- Power factor correction (PFC): 1
- Power factor 0.95
- Connection type, input: Stranded wire
- Number of outputs 1
- Power output: 60 W
- Output voltage 24 V
- Output current 2.5 A
- Overload protection 1
- Overload protection version: Hiccup
- Short circuit protection 1
- Overvoltage protection 1
- Overtemperature protection 1
- Connection type, output: Stranded wire
- Protection class: II
- INSULATION VOLTAGE I/P-O/P 3,750 V
- APPROVALS CE, IEC, UKCA, EAC, CCC,ENEC,EN,UL,RCM
- Standards (EMC) EN 55015
- Standards (security): EN 61347-1, IEC 61347-1, IEC 61347-2-13, EN 61347-2-13
- REACH-SVHC: No.
- WEEE (waste electronics): No.
- Length of feed line, output 15 cm
- Protection class/IP IP67
- RoHS R - RoHS compliant
- Operating mode CV
- Dimmable:1
- Interfaces: 0-10 Volt, PWM
- Power consumption in standby mode (PSB), less than: 0.5 W.
- Number of max. B16 circuit breaker: 25
- Number of max. at C16 Circuit breaker: 36
- Output current selectable: 0
- Product type
LED driver
- Type
Constant voltage
- Operating current
0.35 A
- Dim
(L x W x H) 141.5 x 49.0 x 32.0 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Test mark
CE.IEC.UKCA.EAC.CCC.ENEC.EN.UL.RCM
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Protection class
II
- LED driver features
dimmable
IP67
- Connection
Braid
- Max. power
60.0 W
- No. of outputs
1 x
- Output current (min.)
2.5 A
- Input voltage (max.)
305 V
- Min. input voltage
110 V
- Weight
524.0 g
- Power range
60.0 W (max)
- Width
49.0 mm
- Height
32.0 mm
- Length
141.5 mm
- Max. temperature
90 °C
- Min. temperature
-25 °C
- Operating temperature (max.)
90 °C
- Operating temperature (min.)
-25 °C
- Input voltage
431 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3164375 MEAN WELL XLN-60-24-B LED driver Constant voltage 60.0 W 2.5 A 24 V dimmable 1 pc(s)
Datasheet 3164375 MEAN WELL XLN-60-24-B LED driver Constant voltage 60.0 W 2.5 A 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3164375 MEAN WELL XLN-60-24-B LED driver Constant voltage 60.0 W 2.5 A 24 V dimmable 1 pc(s)
Warranty Terms
Warranty Terms 3164375 MEAN WELL XLN-60-24-B LED driver Constant voltage 60.0 W 2.5 A 24 V dimmable 1 pc(s)
Description
DC-enabled, flicker-free, emergency light control device, independent operating device
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
