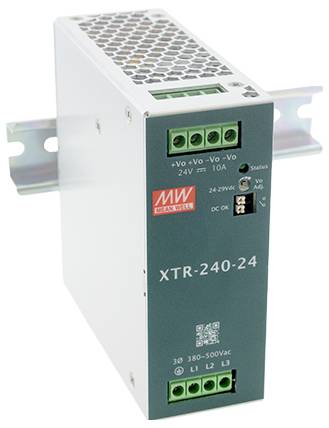

MEAN WELL XTR-240-24 Rail mounted PSU (DIN) 240 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Mean Well AC/DC industrial power supply unit 240W 24V 10A
- Output /
- Power 240 W
Technical specifications
- Mains connection/phases II/III.
- Product type
Rail mounted PSU (DIN)
- Input voltage (max.)
600 V AC
800 V DC
- Min. input voltage
320 V AC
450 V DC
- Dim
(L x W x H) 125 x 48 x 125.2 mm
240 W
- Efficiency to
92.5 %
- Protection class
I
- Output voltage 1
24 V
- Output current 1
10.000 A
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
- Weight
800 g
- Insulation voltage
INSULATION VOLTAGE I/P-O/P:4,870 V
INSULATION VOLTAGE I/P-FG:2,500 V
INSULATION VOLTAGE O/P-FG:500 V
- Width
48 mm
- Height
125.2 mm
- Length
125 mm
- Type
XTR-240-24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3557943 MEAN WELL XTR-240-24 Rail mounted PSU (DIN) 240 W
User & Safety Instructions
User & Safety Instructions 3557943 MEAN WELL XTR-240-24 Rail mounted PSU (DIN) 240 W
Description
The XTR-240 series is an ultra-slim and highly reliable industrial 240W AC/DC DIN rail power supply with 3-phase 320-600Vac input . The main features of this series are a slim 48 mm housing that saves space in the end system, a maximum efficiency of 93.5% and a low standby power consumption of <2.5W for energy savings and carbon reduction. It offers a constant power output with up to 150% peak power, fanless design, ultra-wide operating temperature range of -40 to +85°C (up to +60°C at full load), OVCIII conformity, parallel function up to 960W (on request), ultra-low switch-on current of <10A, built-in DC OK and ORing FET (optional), PCB coating provides basic moisture and dust protection, and has several terminal blocks to choose from. With comprehensive protection features, full security certifications, the XTR-240 series is a compact, powerful and extremely reliable DIN rail power supply. - Mean Well
