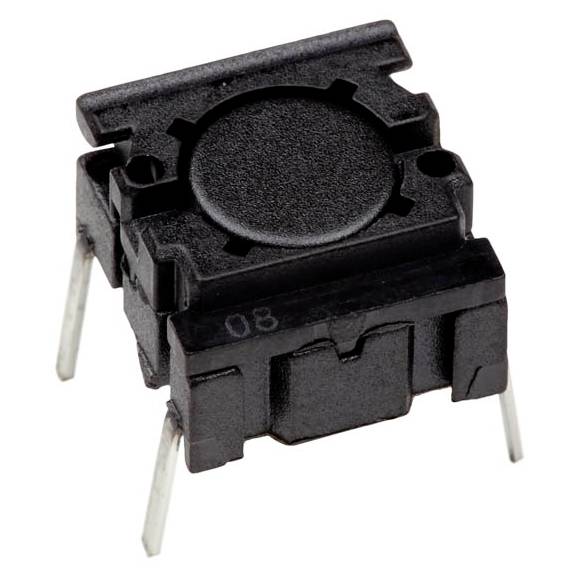

MEC 3ATH9 Multimec Series 3A Switch 24 V 50 mA momentary (L x W x H) 10 x 10 x 6.40 mm IP67 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switch
Lighting type
None
Contact type
1 maker
Switching voltage
24 V
Switching current (max.)
50 mA
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.93
10
7% = € 0.14
€ 1.79
25
10% = € 0.20
€ 1.73
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.93 / piece)
€ 1.93
plus VAT.
Highlights & Details
Switch TH 3.5 N
Our service for you
Technical specifications
- Product type
Switch
- Casing/button colour
Black
- Functions
momentary
- Lighting type
None
- Contact type
1 maker
- Material
PPS
- Contact resistance
10 mΩ
- Switching voltage
24 V
- Switching current (max.)
50 mA
- Min. temperature
-40 °C
- Max. temperature
+160 °C
- Length
10 mm
- Width
10 mm
- Height
6.40 mm
IP67
- Actuating force
3.5 N
- Content
1 pc(s)
- Insulation resistance
10 mΩ
- Dim
(L x W x H) 10 x 10 x 6.40 mm
- RoHS-compliant
Yes
- Type
Multimec Series 3A
Documents & Downloads
Datasheet
Datasheet 3305341 MEC 3ATH9 Multimec Series 3A Switch 24 V 50 mA momentary (L x W x H) 10 x 10 x 6.40 mm IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3305341 MEC 3ATH9 Multimec Series 3A Switch 24 V 50 mA momentary (L x W x H) 10 x 10 x 6.40 mm IP67 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
