Buy MegaSat D4 Profi Line SAT antenna White

A rectangular, white satellite dish with the inscription 'MEGASAT', mounted on a metal bracket against a brick wall.

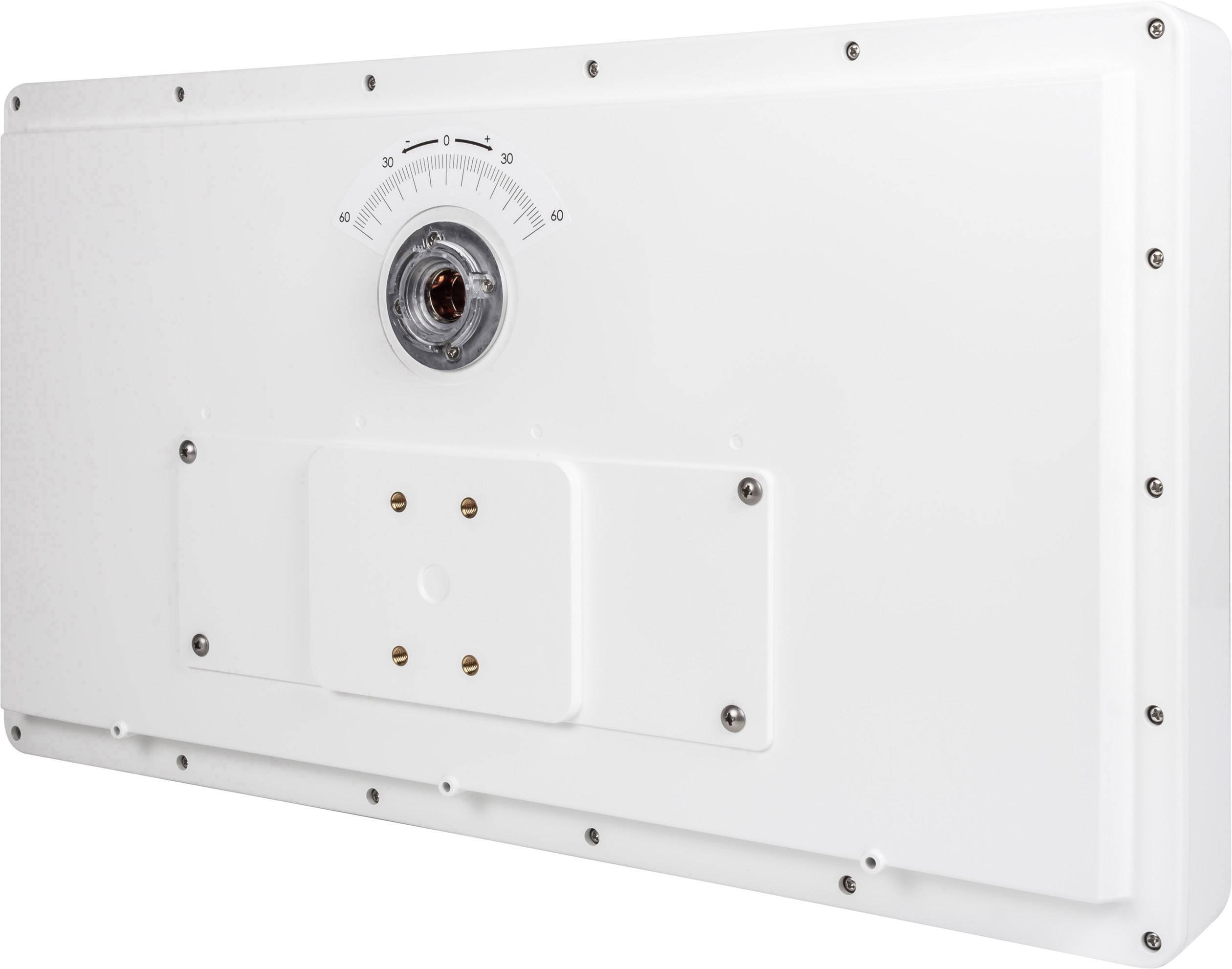

White antenna housing with a central connection point and a scale beneath it.

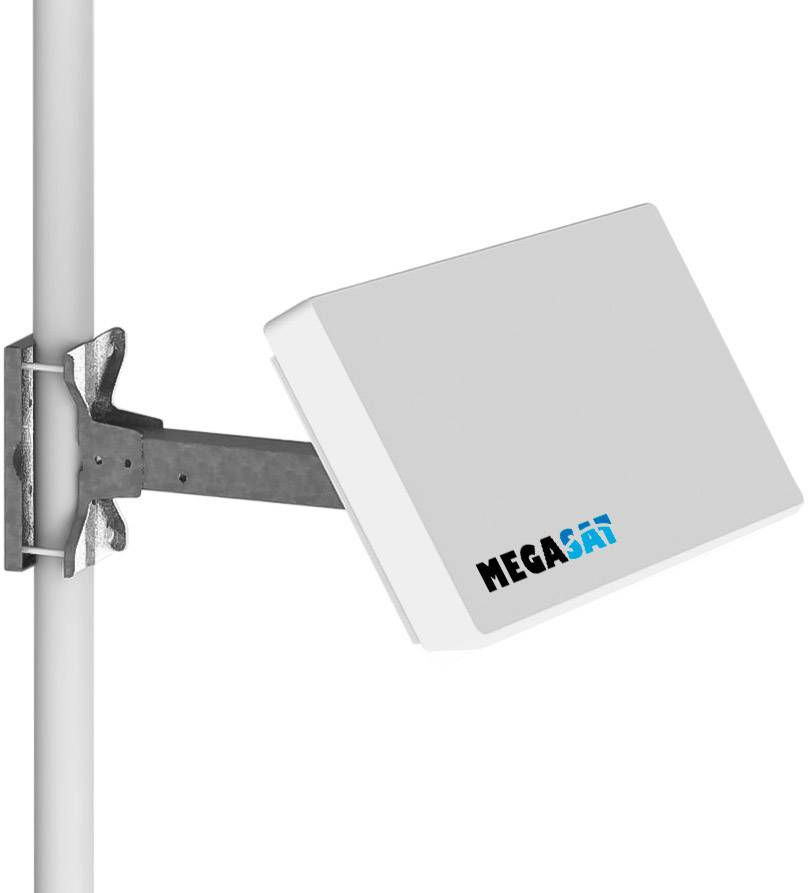

A white satellite antenna by Megasat, mounted on a pole, for wireless signal transmission.

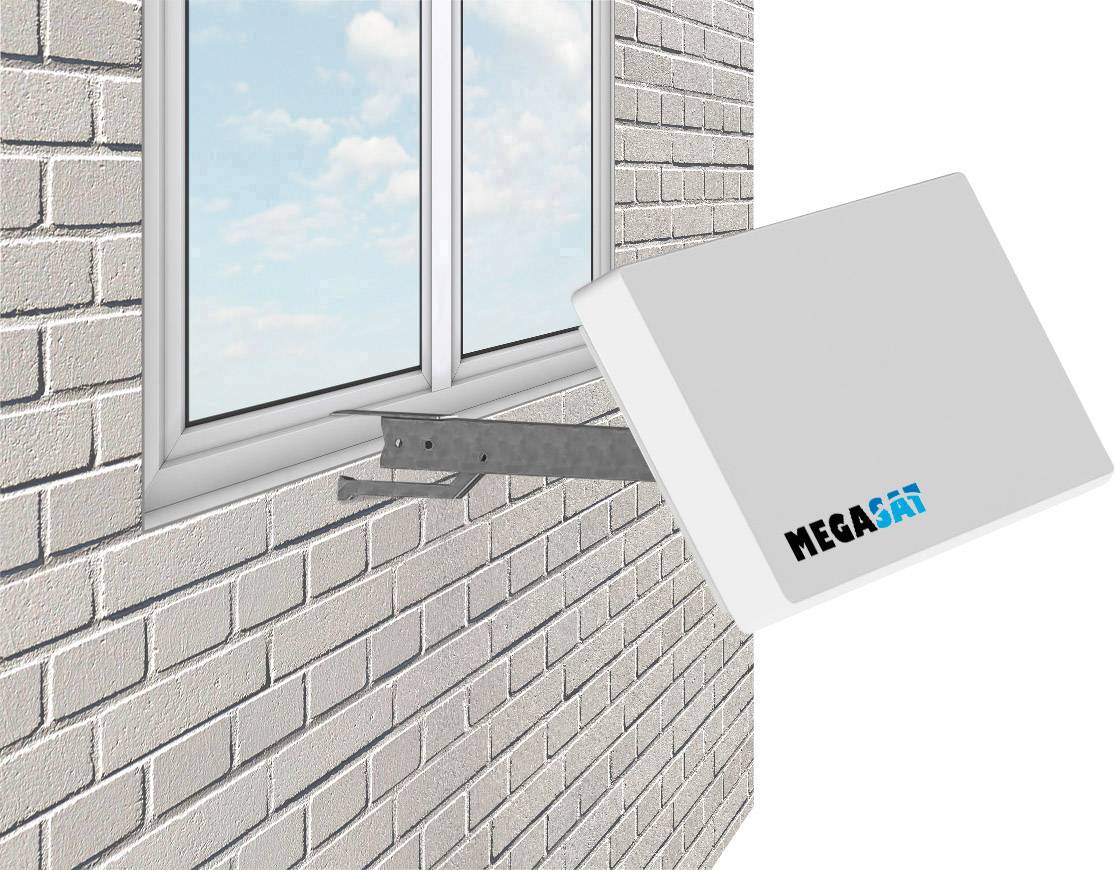

A white aerial is mounted on a bracket on the exterior of a brick house wall, near a closed window.

Rear view of an electronic device with a mounting base and connection socket in a white housing, viewed from a slightly angled perspective.

1/5

Datasheet (PDF)

Dispatches on Tue, 13 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

14-day return policy included

Report legal concerns

Megasat FLAT ANTENNA D4 PROFI-LINE

Highlights & Details

Satellite flat antenna with best reception power
Changeable LNB for 4 subscribers
Equivalent to a conventional 60 cm parabolic antenna
Incl. Holder and accessories for mounting on balcony or house wall
Robust, stable housing

Technical specifications

Input frequency: 10.7 - 12.75 GHz
Polarization: Linear (vertical / horizontal)
Antenna amplification 33 dBi @ 12.75 GHz
LNB output frequency: 950 - 1950 MHz / 1100 - 2150 MHz
L. O. Frequency: 9.75 GHz/10.6 GHz
LNB amplification: Min. 55 dB/ max. 66 dB
Gain Flatness 5 dB
POWER SUPPLY 12 - 14 V DC (V) / 16 - 19 V DC (H)
Power consumption max. 160 mA
Operating temperature: 20°C - +60°C
Storage temperature: -40°C - +80°C.

Product type: SAT antenna

Factory colour: White

Weight: 3.6 kg

Participants: 4

Cable length: 0 cm

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1918244 MegaSat D4 Profi Line SAT antenna White

User & Safety Instructions

User & Safety Instructions 1918244 MegaSat D4 Profi Line SAT antenna White

Description

Best reception - can be used flexibly
The flat antenna is the ideal solution for receiving space-saving and inconspicuous satellite television. Its flat, compact and easy to install design makes the antenna (almost) invisible. The robust and stable housing protects the high-quality electronics inside from influences of the weather. The reception power is equivalent to a conventional 60 cm parabolic mirror and is perfectly suitable for mounting on the balcony or directly on the house wall.

Simply replace the LNB
A universal LNB for 4 subscribers is included in the delivery. In contrast to conventional flat antennas, the entire unit does not have to be replaced in the event of a defect, but only the LNB itself, which saves you money. If required, the LNB can be replaced with just a few simple steps. This way you can also upgrade your system for more participants at low cost.

This text is machine translated.
