Buy MegaSat HD 200 C V2 HD cable receiver USB (front) No. of tuners: 1

A Megasat HD 200 C V2 digital HD receiver with USB port and LED display shows '00001'. Buttons for channel change and power.

Back of a DVB-C receiver with connections: Aerial, Loop Out, Coaxial, HDMI, SCART, Power Connection and Network Details.

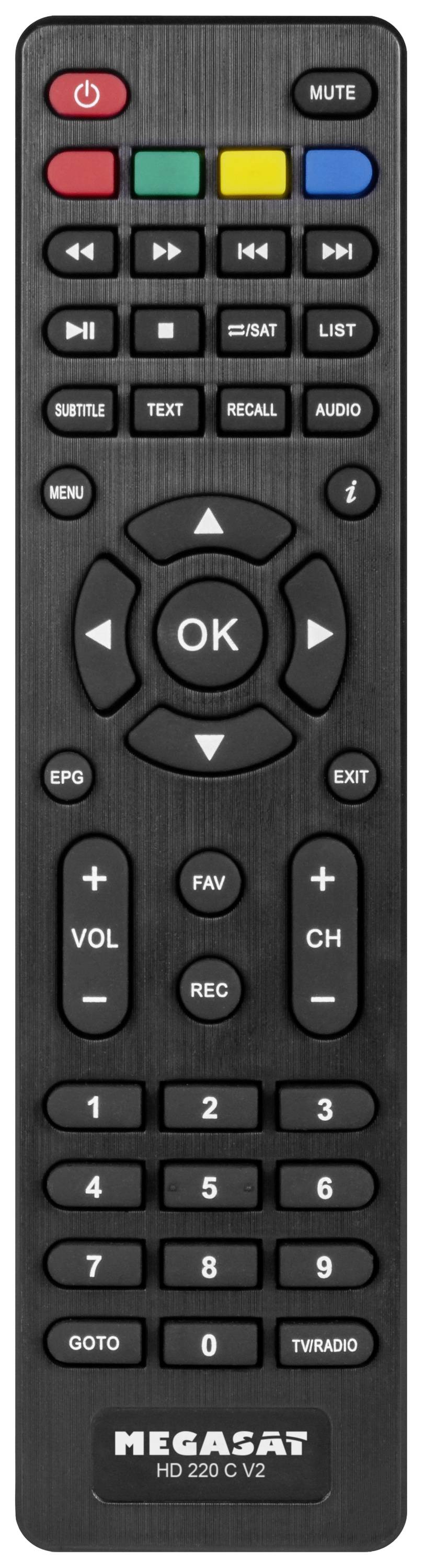

Black remote control with buttons for volume, channel changing, menu navigation, and numerical input. Colourful function buttons at the top.

1/3

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

29 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 31.92 / piece)

€ 31.92

plus VAT.

Report legal concerns

Highlights & Details

MegaSat satellite receiver HD 200 C

HD cable receiver
USB (front)

Technical specifications

Resolution up to 1080pPicture formats 4:3, 16:9.32-bit color screen menuSDRAM 512 MB DDR-2Input frequency 114 ~ 858 MHzBandwidth 8 MHz75 Ω input impedanceNoise factor 2.9 dBDEMODULATION: 256 QAM, 128 QAM, 64 QAM, 32 QAM, 16 QAM

Product type: HD cable receiver

TV receiver features: USB (front)

Tuners: 1

No. of USB ports: 1 x

SCART connections: 1

Interfaces: HDMI™
SCART
USB A (USB 2.0)
S/PDIF
AV

Width: 168 mm

Height: 38 mm

Depth: 93 mm

Weight: 234 g

Operating voltage: 230 V

Factory colour: Black

Dim: (W x H x D) 168 x 38 x 93 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2758044 MegaSat HD 200 C V2 HD cable receiver USB (front) No. of tuners: 1

User & Safety Instructions

User & Safety Instructions 2758044 MegaSat HD 200 C V2 HD cable receiver USB (front) No. of tuners: 1

Description

Brilliant HD quality in the cable networkThe MegaSat HD 200 C V2 is a full HD receiver for the reception of all free TV and radio programs in the cable network (DVB-C). The HDMI connection delivers a resolution of up to 1080p and thus offers impressive picture brilliance and sharpness. The usual simple operation of the MegaSat receiver is also proven in this model.USB connection for media playbackThe integrated USB connection enables an easy playback of video, image and music files via external storage media such as USB-stick or external hard-disk. In this way you can playback your videos, holiday pictures or MP3-collection comfortably via the TV-set. Even future firmware updates can be loaded easily via the interface.Digital audio output for real cinema experienceThe MegaSat HD 200 C V2 has a digital audio output (S/PDIF), through which you can directly connect to a home cinema surround system. With this you enjoy films in digital audio quality and a surround effect, as if you were in the middle of the events.

This text is machine translated.

Features

Powerful dual MIPS CPUDVB-C receptionMPEG-4 AVC/H.264 STANDARDPAL / NTSC conversionVariable page ratio (4:3, 16:9) with pan vector or letterbox7 segment display (4-digit)3-button front controlLED (operation/standby)Media playback via USBFavourites listsChildproofResolution up to 1080pHDMI with Upscale function for improving the picture qualityScreen menu with full color resolutionVideo text and sub-title support (OSD)7-day EPG (Electronic Program Guide)Multi-language menuDigital audio output (S/PDIF)USB 2.0 connection (media playback)

Scope of delivery

MegaSat HD 200 V2
Remote control
Batteries
230/12 volt power supply
User manual

Hints

*HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP.
